Honda Pilot: Moonroof Motor-Control Unit Removal and Installation

Removal/Installation

NOTE: SRS components are located in this area. Review the SRS component locations and the precautions and procedures before doing repairs or service.

1. Headliner - Remove

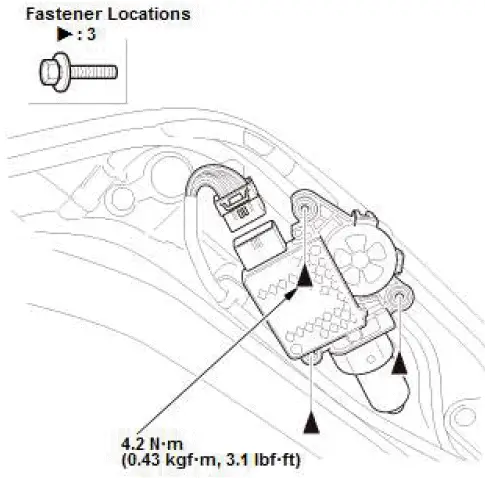

2. Moonroof Motor - Remove

3. All Removed Parts - Install

1. Install the parts in the reverse order of removal.

4. Moonroof Control Unit - Reset

Moonroof Sunshade Removal and Installation

Removal/Installation

NOTE: SRS components are located in this area. Review the SRS component locations and the precautions and procedures before doing repairs or service.

1. Moonroof Glass - Remove

2. Moonroof Drain Channel - Remove

3. Rear Middle Drain Tube - Remove

4. Moonroof Frame - Remove

5. Sunshade - Remove

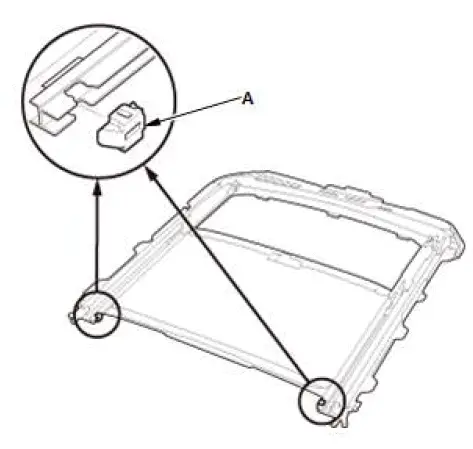

1. Remove the sunshade stoppers (A).

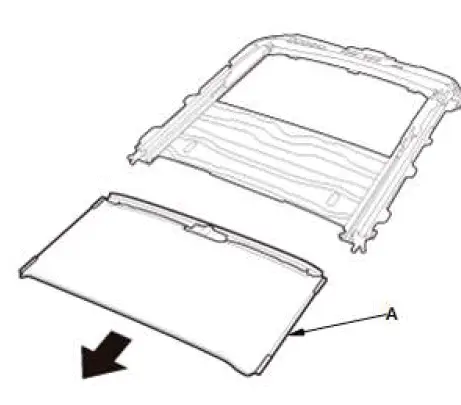

2. Slide the sunshade (A) forward, and then remove it.

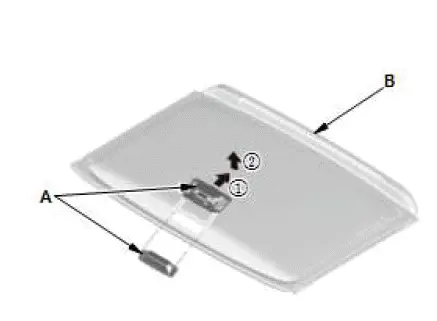

3. If necessary, remove the sunshade holder (A) from the sunshade (B).

6. All Removed Parts - Install

1. Install the parts in the reverse order of removal.

7. Moonroof Glass Position - Adjust
