Honda Pilot: Moonroof Switch Removal, Installation, and Test

Removal/Installation

1. Front Individual Map Light - Remove

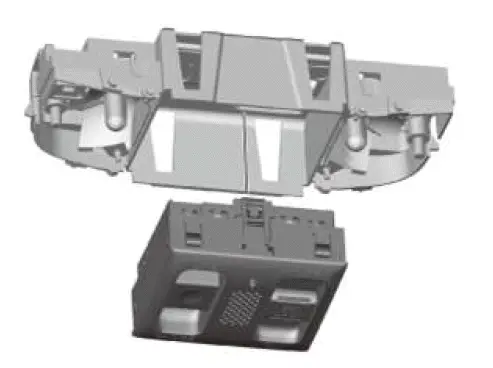

2. Moon Roof Switch - Remove

3. All Removed Parts - Install

1. Install the parts in the reverse order of removal.

Test

1. Moonroof Switch - Test

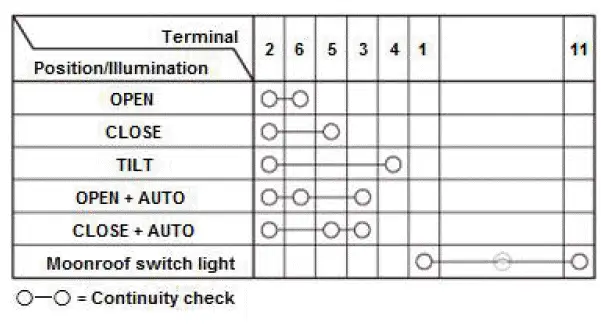

1. Check for continuity between the terminals in each switch position according to the table.

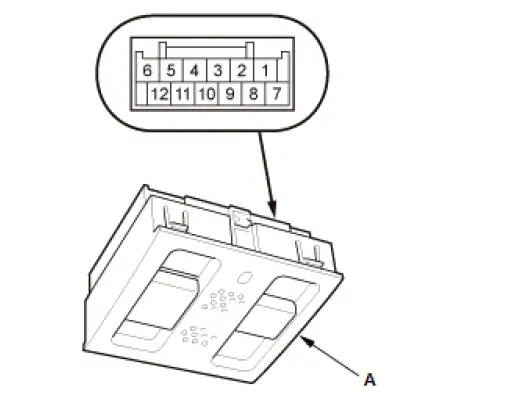

2. If the result is not as specified, the moonroof switch is faulty; replace the moon roof switch (A).

Moonroof Wind Deflector Removal and Installation

Removal/Installation

1. Wind Deflector - Remove

1. Open the glass fully.

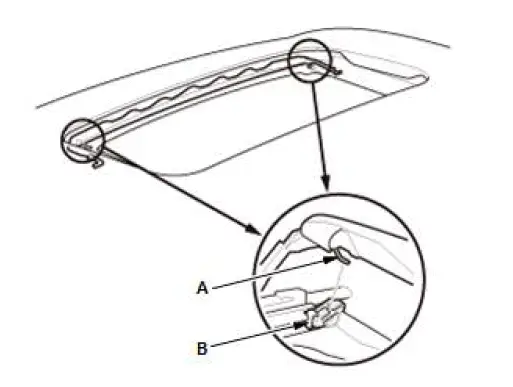

2. Disconnect the deflector springs (A) from the bushings (B) on both sides.

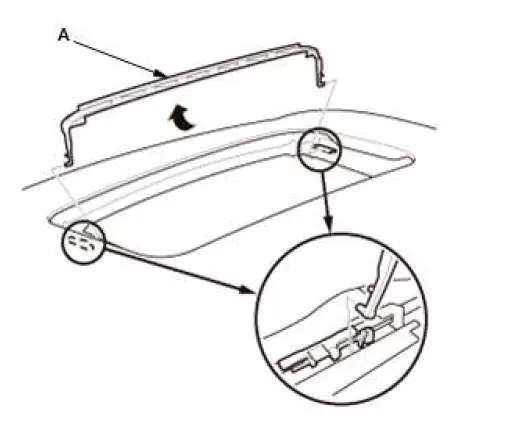

3. Remove the wind deflector (A).

2. All Removed Parts - Install

1. Install the parts in the reverse order of removal.

3. Moonroof Control Unit - Reset
