Honda Pilot: Paddle Shifter Test

Test

SRS components are located in this area. Review the SRS component locations and the precautions and procedures before doing repair or service.

1. Driver's Airbag - Remove

2. Paddle Shifter - Test

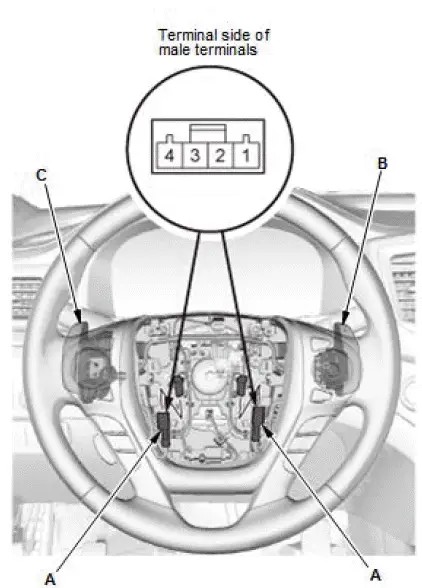

1. Disconnect the connectors (A).

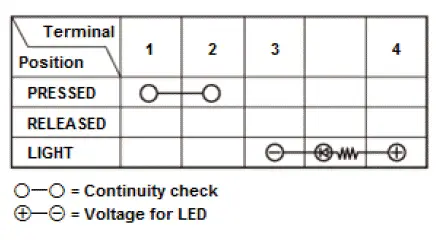

2. Check the paddle shifter + (upshift switch) (B) and the paddle shifter ( downshift switch) (C) according to the table.

NOTE: This important operating characteristic; diode bias causes a diode to fully conduct electricity in one direction (forward), while not at all in the opposite direction (reverse).

3. If the result is not as specified, replace the paddle shifter + (upshift switch) and/or the paddle shifter ( downshift switch).

3. All Removed Parts - Install

1. Install the parts in the reverse order of removal.
