Honda Pilot: Park Pin Switch Removal and Installation

Removal/Installation

NOTE: The park pin switch and the shift lock unit are not available separately. Remove the park pin switch and the shift lock unit as a set.

1. Shift Lock Unit - Remove

2. All Removed Parts - Install

1. Install the parts in the reverse order of removal.

Parking and Back-Up Sensor Control Unit Removal and Installation

Removal/Installation

1. Parking and Back-Up Sensor Control Unit - Remove

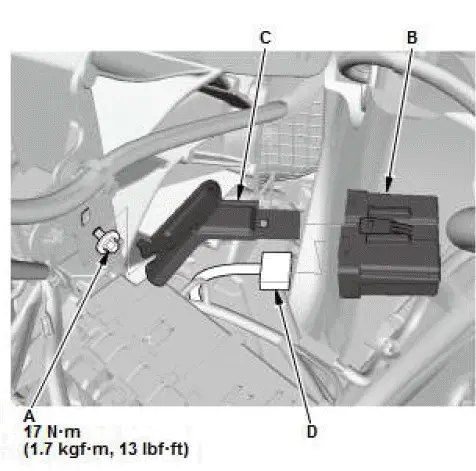

1. Loosen the TORX bolt (A) using a TORX E8 socket.
2. Remove the parking and back-up sensor control unit (B) with the bracket (C).
3. Disconnect the connector (D).
4. Remove the bracket.

2. All Removed Parts - Install

1. Install the parts in the reverse order of removal.

   NOTE: If the bolt threads of the steering hanger beam are stripped, replace the bolts with one-size larger bolts (available as a service part), which are specifically designed to tighten the instrument panel to the specified torque setting.

Parking and Back-Up Sensor Switch Removal and Installation

Removal/Installation

1. Driver's Dashboard Lower Cover - Remove

2. Parking and Back-Up Sensor Switch - Remove

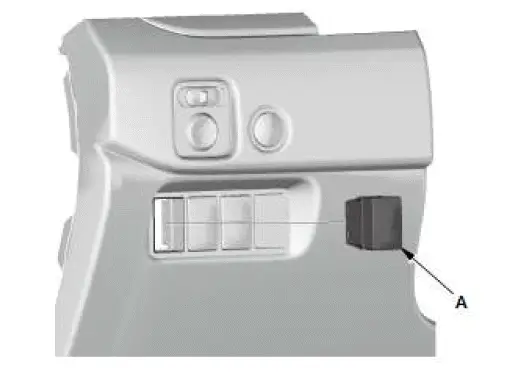

NOTE: The mounting position of the parking and back-up sensor switch (A) is different depending on the model.

3. All Removed Parts - Install

1. Install the parts in the reverse order of removal.
