Honda Pilot: Parking Brake Shoe Removal and Installation

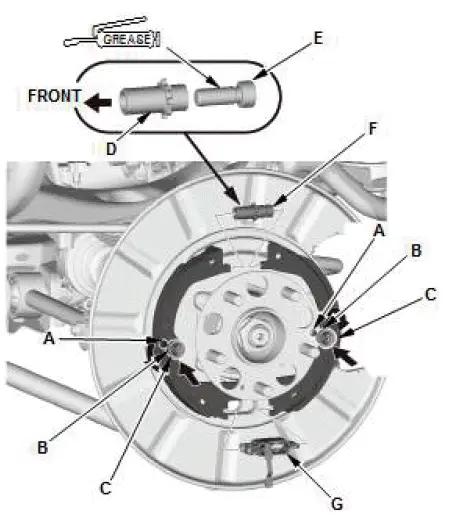

Exploded View

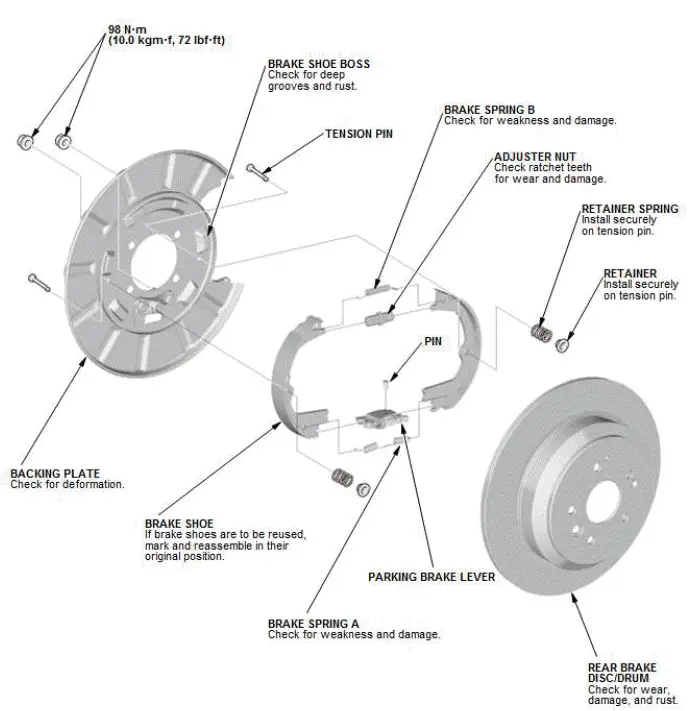

1. Parking Brake Shoe - Exploded View

Exploded View

Removal

CAUTION

• Avoid breathing dust particles.
• Never use an air hose or brush to clean brake assemblies. Use an OSHA-approved vacuum cleaner.

1. Vehicle - Lift

2. Rear Wheels - Remove

3. Rear Brake Disc/Drum - Remove

4. Parking Brake Cable - Disconnect

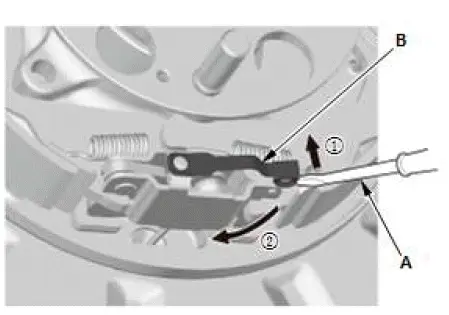

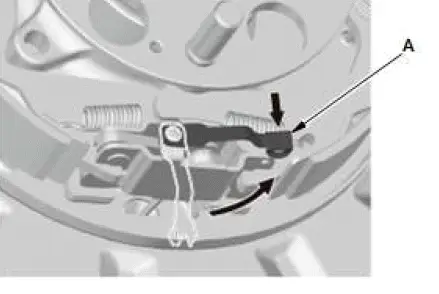

1. Using a flat-tip screwdriver (A), detach the clip (B) and then rotate the clip down.

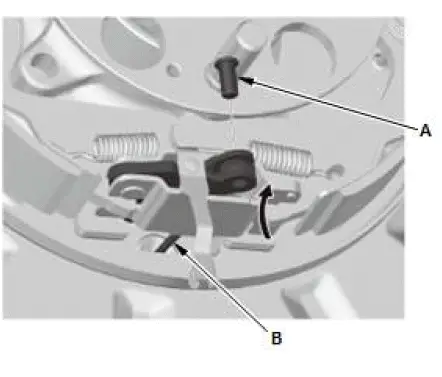

2. Pull out the link of the parking brake lever assembly, and then remove the pin (A).
3. Remove the parking brake cable (B) from the parking brake lever assembly.

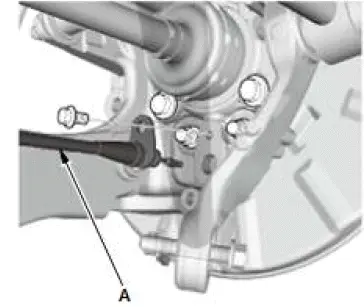

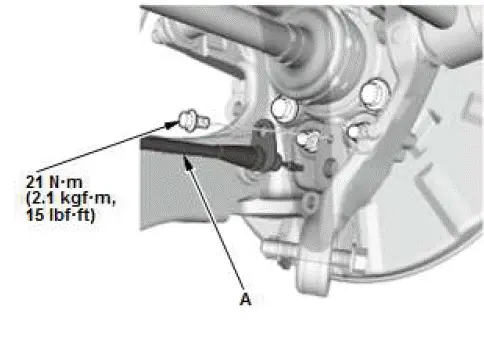

4. Remove the parking brake cable (A).

5. Parking Brake Shoe - Remove

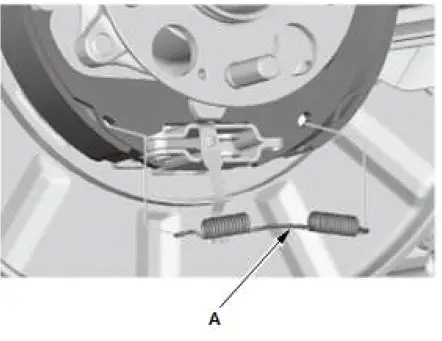

1. Disconnect and remove the brake spring A.

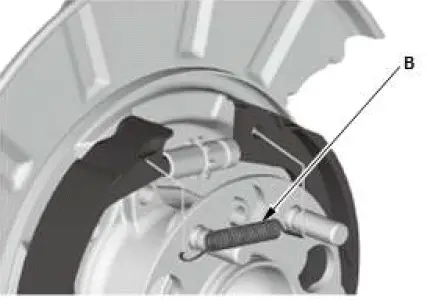

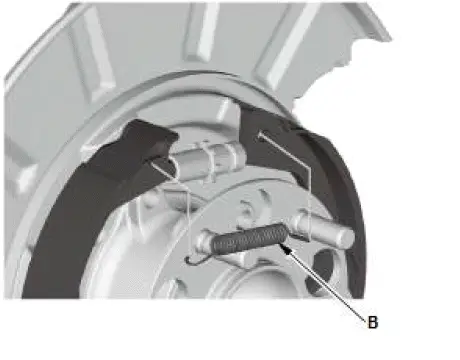

2. Disconnect and remove brake spring B.

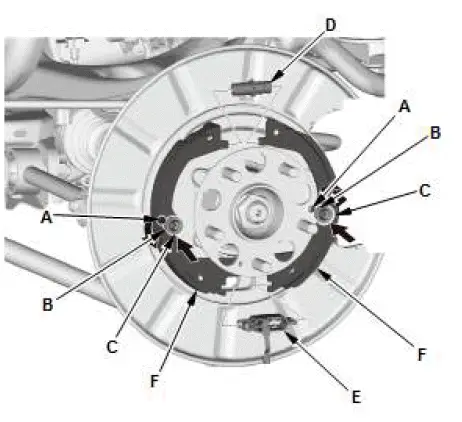

3. Remove the tension pins (A) by pushing the respective retainer springs (B), retainers (C), and turning the pin.
4. Remove the adjuster assembly (D).
5. Remove the parking brake lever assembly (E).
6. Remove the parking brake shoes (F).

Installation

CAUTION

Frequent inhalation of brake pad dust, regardless of material composition, could be hazardous to your health.

• Avoid breathing dust particles.
• Never use an air hose or brush to clean brake assemblies. Use an OSHA-approved vacuum cleaner.

1. Parking Brake Shoe - Install

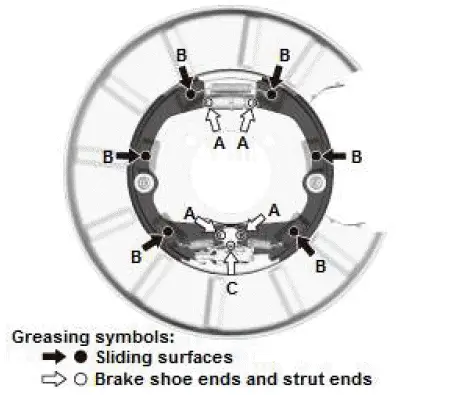

1. Apply Plastilube #2 grease to the brake shoe ends and strut ends (A), sliding surfaces of the parking brake shoe (B), and the pivot of the parking brake lever (C) as shown.

   Wipe off any excess. Keep grease off the brake linings.

2. Install the tension pins (A), retainer springs (B), and retainers (C).
3. Install adjuster nut (D) and adjuster bolt (E) on the adjuster assembly (F).

NOTE:

• Clean the threaded portions of adjuster nut and the sliding surface of adjuster bolt, then coat them with Plastilube #2 grease.
• Shorten adjuster assembly by fully turning the adjuster nut.

4. Install the parking brake lever assembly (G).
5. Install the brake shoe adjuster assembly on the parking brake shoes.

6. Install the brake spring B.

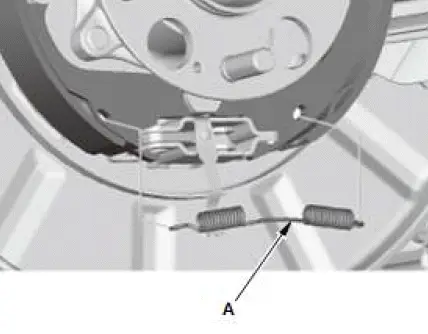

7. Install the brake spring A.

2. Parking Brake Cable - Disconnect

1. Install the parking brake cable (A).

2. Install the pin (A) to attach the parking brake cable (B) to the parking brake lever assembly.
3. Put the link of the parking brake lever assembly back.

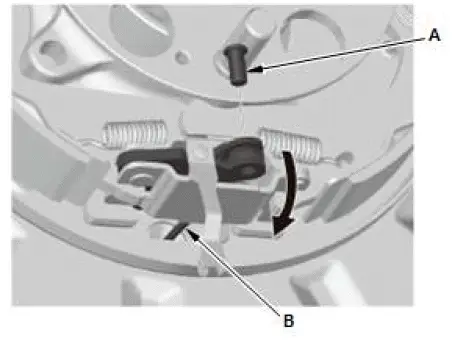

4. Rotate the clip (A) horizontally to install the clip.
