Honda Pilot: Passenger's Dashboard Trim Panel Removal and Installation
Honda Pilot 2016-2022 (YF5/YF6) Service Manual / Remove, Install, Replace, Check info / Passenger's Dashboard Trim Panel Removal and Installation
Removal/Installation
1. Dashboard Side Lid - Remove (Passenger's Side)

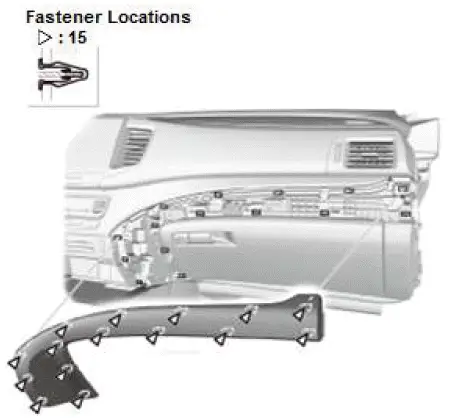

2. Passenger's Dashboard Trim Panel - Remove
3. All Removed Parts - Install
- Install the parts in the reverse order of removal.
Passenger's Dashboard Undercover Removal and Installation
Removal/Installation

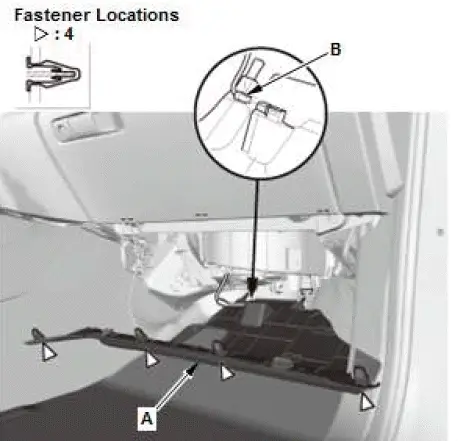

1. Passenger's Dashboard Undercover - Remove
- Remove the passenger's dashboard undercover (A).
- Disconnect the connector (B). (for some models)
2. All Removed Parts - Install
- Install the parts in the reverse order of removal.
