Honda Pilot: Parking Brake Switch Test

NOTE: If both the ABS/VSA indicator and the brake system indicator come on at the same time, check the VSA system for DTCs first.

1. Parking Brake Switch - Test

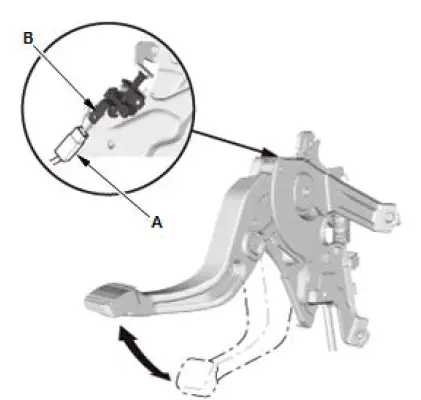

1. Disconnect the connector (A).
2. Check for continuity between the switch terminal (B) and body ground.
   • With the parking brake pedal pressed, there should be continuity.
   • With the parking brake pedal released, there should be no continuity.

NOTE: If the parking brake switch and the brake fluid level switch are OK, but the brake system indicator does not function, do the gauge control module self-diagnostic function.

2. Connect the connector.
