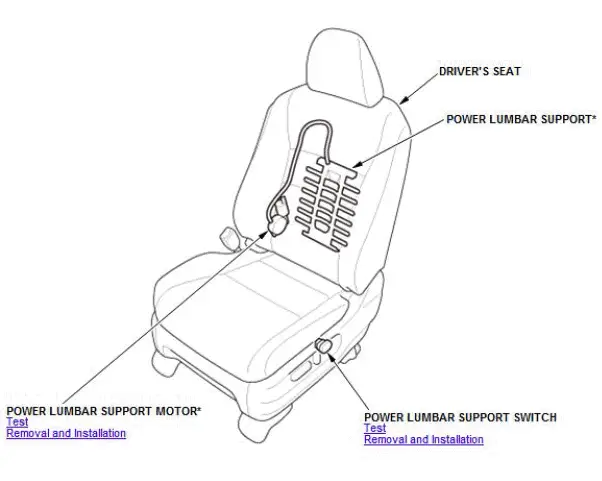

Honda Pilot: Power Lumbar Support Component Location Index

• DRIVER'S SEAT
• POWER LUMBAR SUPPORT*
• POWER LUMBAR SUPPORT SWITCH
• POWER LUMBAR SUPPORT MOTOR*

* Included in a power lumbar support assembly.

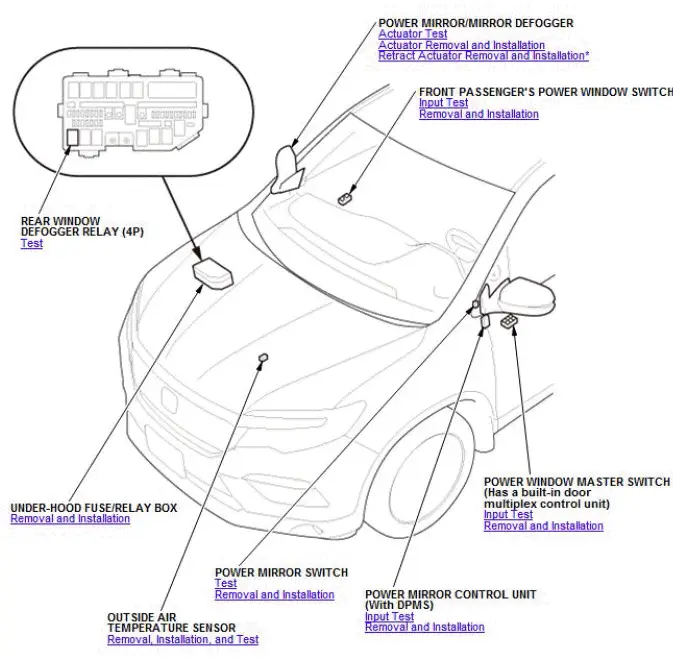

Power Mirrors Component Location Index

• REAR WINDOW DEFOGGER RELAY (4P)
• POWER MIRROR/MIRROR DEFOG GER
• FRO NJ PASSENGER'S POWER WINDOW SWITCH
• POWER WINDOW MASTER SWITCH (Has a built-in do or multiplex control unit)
• POWER MIRROR CONTROL UNIT (With DPMS)
• POWER MIRROR SWITCH
• OUTSIDE AIR TEMPERATURE SENSOR
• UNDER-HOOD FUSE/RELAY BOX

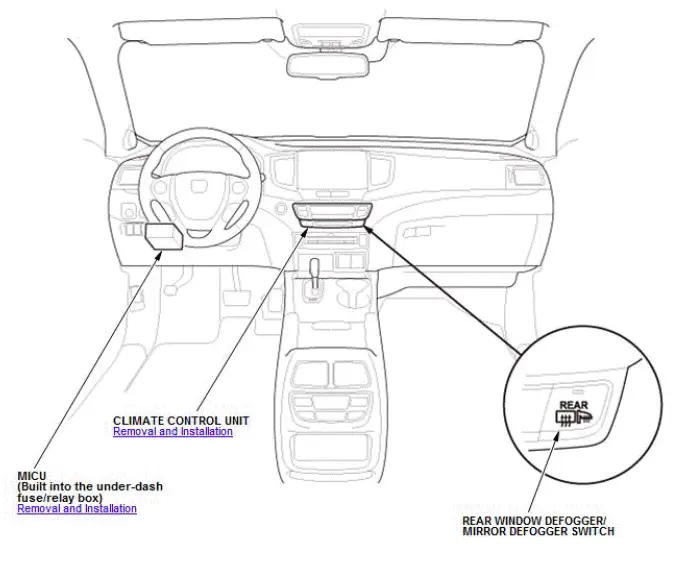

• MICU (Built into the under-dash fuse/relay box)
• CLIMATE CONTROL UNIT
• REAR WINDOW DEFOGGER
