Honda Pilot: Power Seats Component Location Index

For the driver's power seat, refer to DPMS Component Location Index.

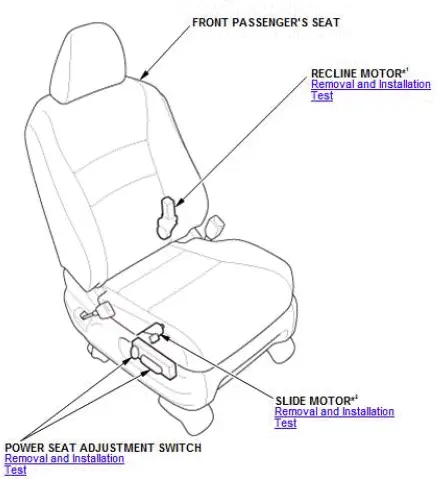

• FRONT PASSENGER'S SEAT
• RECLINE MOTOR*1
• SLIDE MOTOR*2
• POWER SEAT ADJUSTMENT SWITCH

*1 Included in a seat frame assembly.
*2 Included in a seat rail assembly.

Power Tailgate Component Location Index

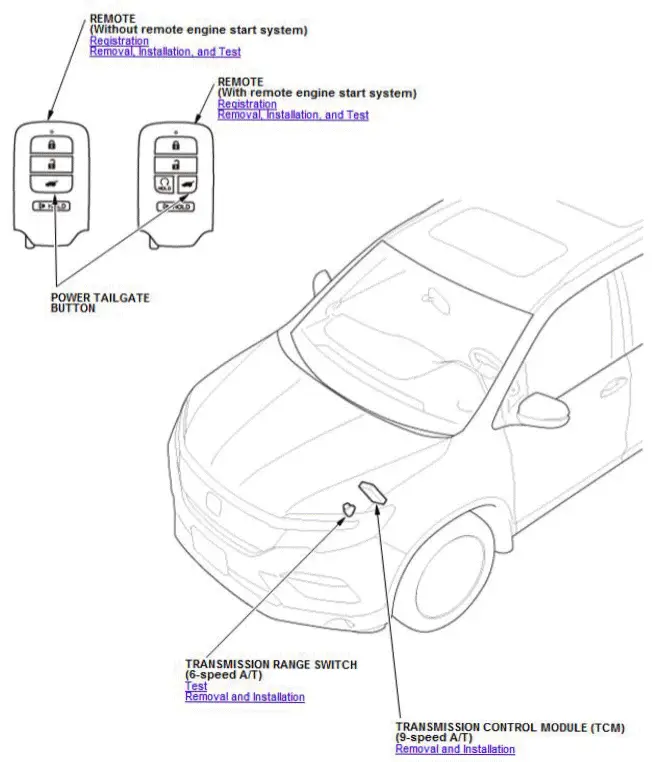

• REMOTE (Without remote engine start system)
• REMOTE (With remote engine start system)
• POWER TAILGATE BUTTON
• TRANSMISSION RANGE SWITCH (6-speed A/T)
• TRANSMISSION CONTROL MODULE (TCM) (9-speed A/T)

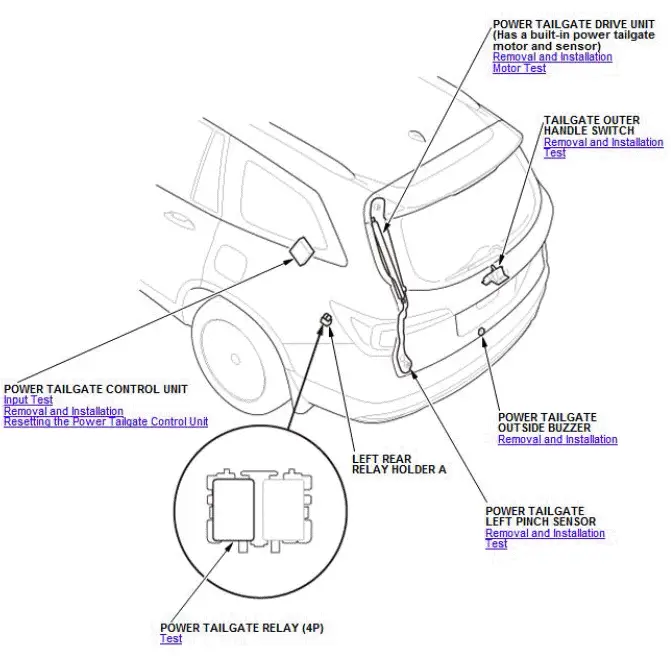

• POWER TAILGATE DRIVE UNIT (Has a built-in power tailgate motor and sensor)
• TAILGATE OUTER HANDLE SWITCH
• POWER TAILGATE OUTSIDE BUZZER
• POWER TAIL GATE LEFT PINCH SENSOR
• LEFT REAR RELAY HOLDER A
• POWER TAILGATE RELAY (4P)
• POWER TAILGATE CONTROL UNIT

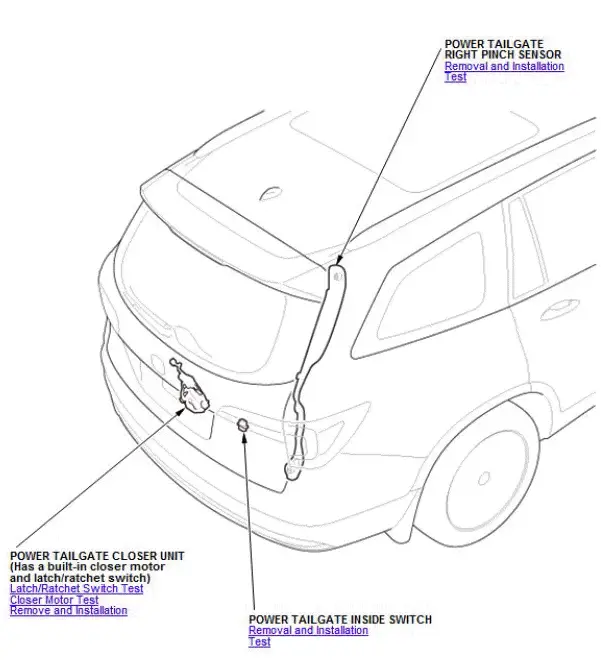

• POWER TAILGATE RIGHT PINCH SENSOR
• POWER TAILGATE INSIDE SWITCH
• POWER TAILGATE CLOSER UNIT (Has a built-in closer motor and latch/ratchet switch)

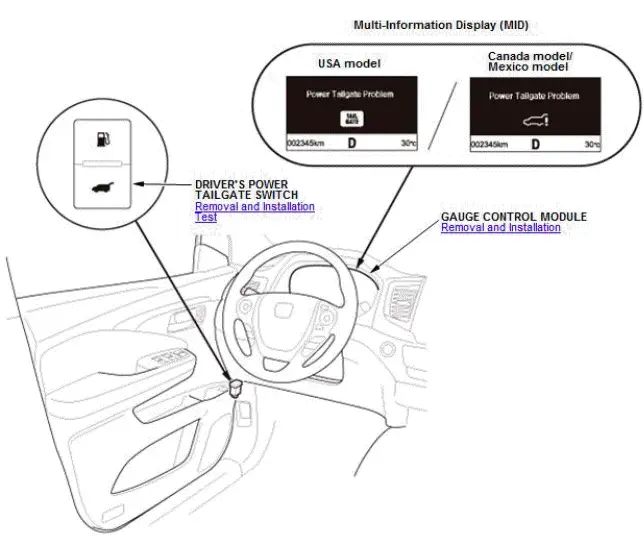

• DRIVER'S POWER TAILGATE  SWITCH
• GAUGE CONTROL MODULE
