Honda Pilot: Power Lumbar Support Switch Test

Test

1. Front Seat Recline Cover - Remove

NOTE: If you are removing the front seat recline cover, you do not need to remove the front seat.

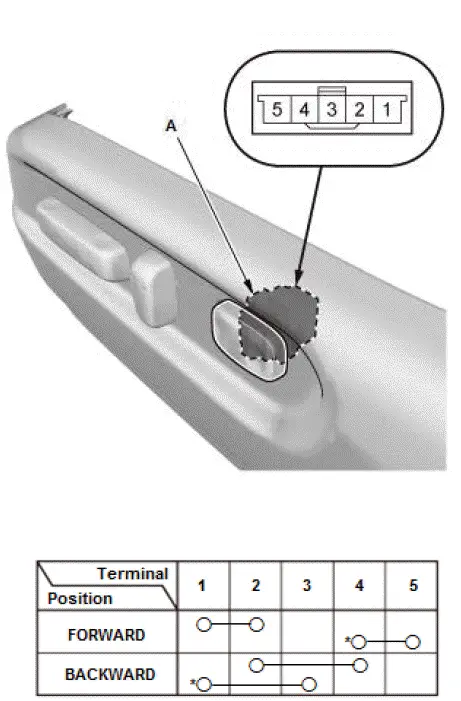

2. Power Lumbar Support Switch - Test

*: There is continuity without operating a switch.

1. Check for continuity between the terminals in each switch position according to table.
2. If the continuity is not as specified, replace the power lumbar support switch (A).

3. All Parts Removed - Install

1. Install the parts in the reverse order of removal.
