Honda Pilot: Power Lumbar Support System Description - Overview

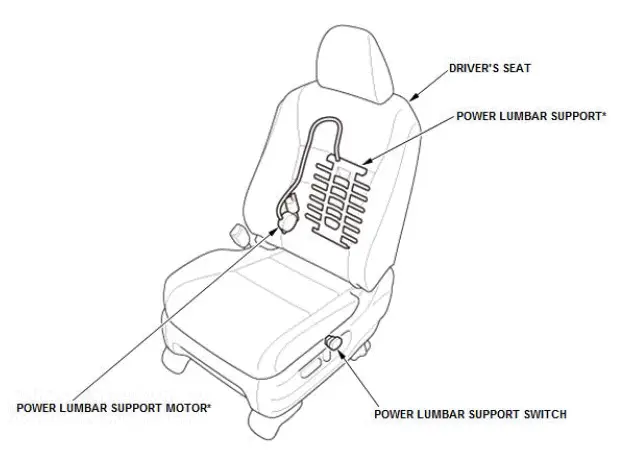

Some models come equipped with the power lumbar support for the driver's seat.

• DRIVER SEAT
• POWER LUMBAR SUPPORT*
• POWER LUMBAR SUPPORT SWITCH
• POWER LUMBAR SUPPORT MOTOR*

*: Included in a power lumbar support assembly.

Power Mirrors System Description - Components

Power Mirror

The power mirror has a built-in power mirror actuator, the power mirror retract actuator *1 , and the power mirror defogger *2.

*1: With retract mirror
*2: With power mirror defogger

Power Window Master Switch

During power mirror control, the power window master switch operates the retract actuator and the power mirror defogger on the driver's side via the power mirror switch and the B-CAN signal input.

Front Passenger's Power Window Switch

During power mirror control, the passenger's power window switch receives a signal from the power window master switch via the LIN and operates the retract actuator and the power mirror defogger on the passenger's side.
