Honda Pilot: Power Mirrors System Description - Control/Function

Power Mirror Defogger Manual Function

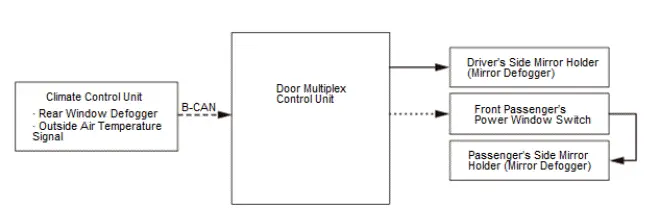

The power mirror defogger is controlled by the climate control unit. When the vehicle is in the ON mode and the rear window defogger/mirror defogger switch is pressed, the climate control unit sends the defogger ON signal as a B-CAN signal to the door multiplex control unit. The door multiplex control unit operates the driver's side mirror defogger, and sends the defogger ON signal via the LIN to the front passenger's power window switch to operate the passenger's side mirror defogger.

Power Mirror Defogger Timer Function

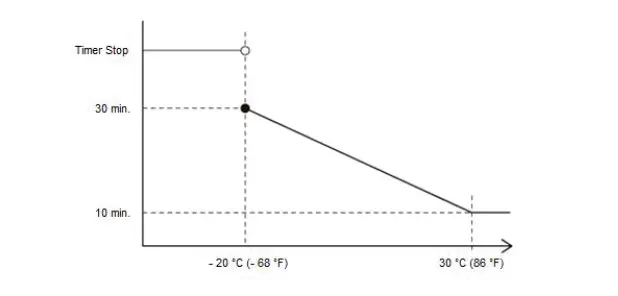

The power mirror defogger provides the timer control function that is controlled by the climate control unit. The timer control is operated by turning the vehicle to the ON mode, then turning on the power mirror defogger switch. The timer operating time varies according to ambient temperature. If the power mirror defogger switch is turned on when the timer is active, it toggles between ON and OFF every time the switch is pressed.

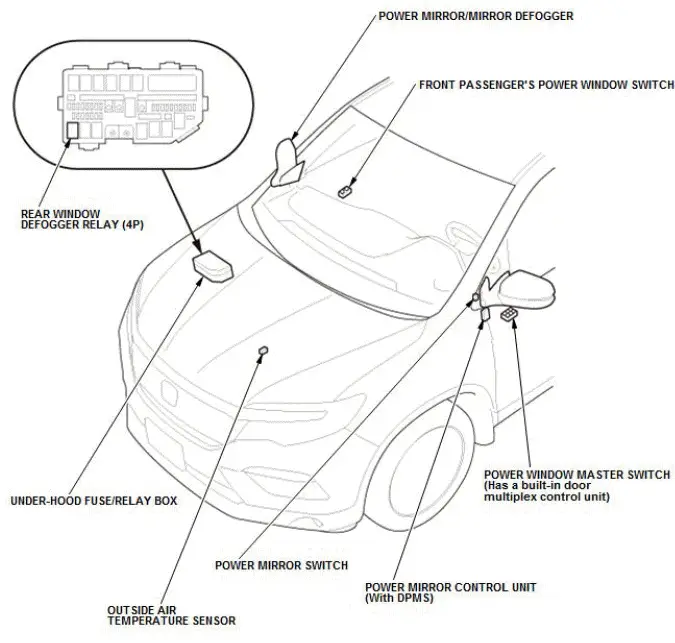

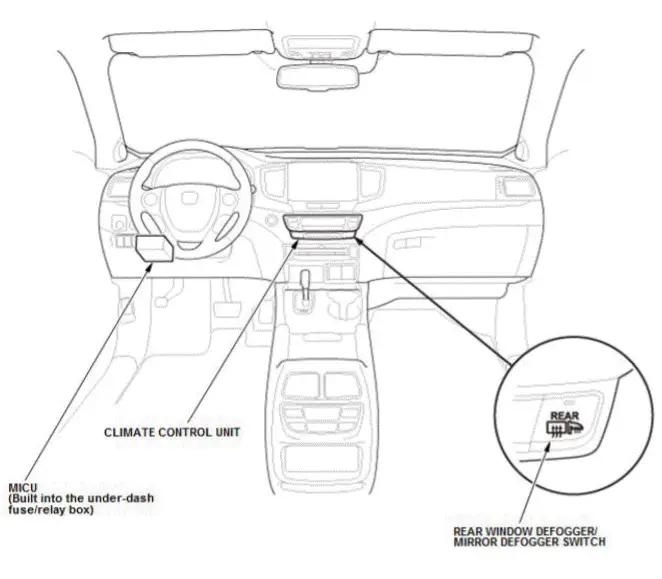

Power Mirrors System Description - Overview

Some models come equipped with the remote controlling door mirrors and the power mirror defogger.

*: With retract power mirror

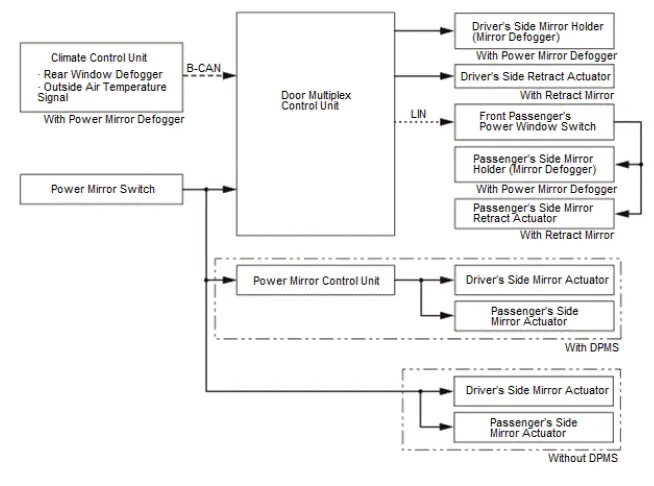

Power Mirrors System Description - System Diagram

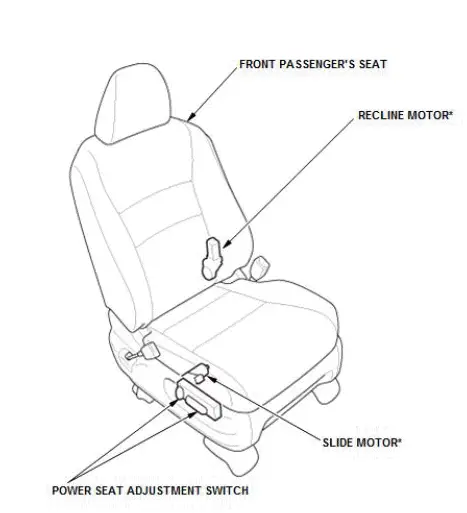

Power Seats System Description - Overview

Some models come equipped with the power seat for the driver's seat and front passenger's seat.

*: Included in a seat frame assembly.
