Honda Pilot: Power Mirror Switch Removal and Installation

Removal/Installation

1. Driver's Dashboard Lower Cover - Remove

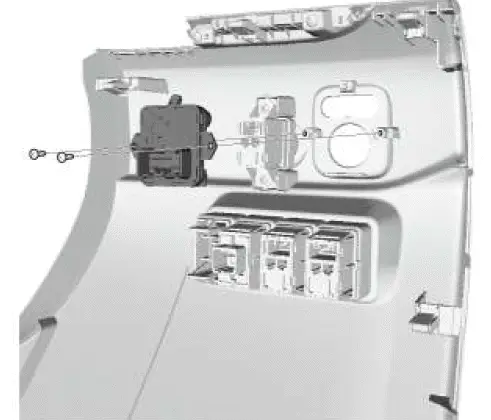

2. Power Mirror Switch - Remove

3. All Removed Parts - Install

1. Install the parts in the reverse order of removal.

Power Seat Control Unit Removal and Installation

Removal/Installation

NOTE: If the replaced control unit is not a new one, clear the driving position memory. If the original control unit is installed, confirm that all systems work properly.

1. Driver's Seat Recline Cover - Remove

NOTE: If you are removing the driver's seat recline cover, you do not need to remove the driver's seat.

2. Power Seat Control Unit/Power Seat Adjustment Switch - Remove

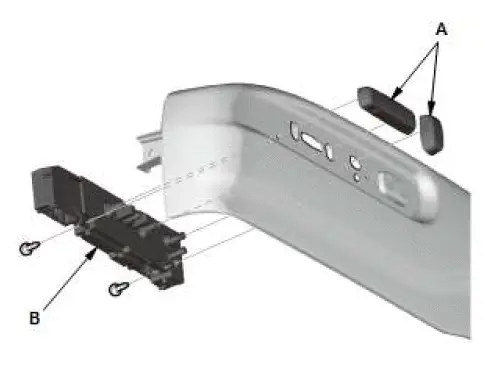

1. Remove the power seat control unit/power seat adjustment switch knobs (A).
2. Remove the power seat control unit/power seat adjustment switch (B).

3. All Removed Parts - Install

1. Install the parts in the reverse order of removal.

4. Driving Position Memory - Clear

1. If the replaced power seat control unit is not a new one, clear the driving position memory.
