Honda Pilot: Power Steering Assist Check

Check

1. Power Steering Assist - Check

NOTE: This test should be done with original equipment tires and wheels at the correct tire pressure.

1. Start the engine, and let it idle.

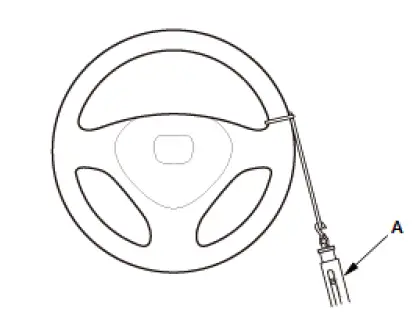

2. Attach a commercially available spring scale (A) to the steering wheel. With the engine idling and the vehicle on a clean, dry floor, pull the scale as shown, and read it as soon as the tires begin to turn.

Initial turning load: 29 N (3.0 kgf, 6.5 lbf) max.

3. If the scale reads no more than the specification, the power assist is OK. If it reads more, check these items:

• Steering linkage.
• Rack guide adjustment.
• EPS system.

Power Tailgate Control Unit Removal and Installation

Removal/Installation

1. Left Rear Side Trim Panel - Remove

2. Power Tailgate Control Unit - Remove

1. Disconnect the connectors.

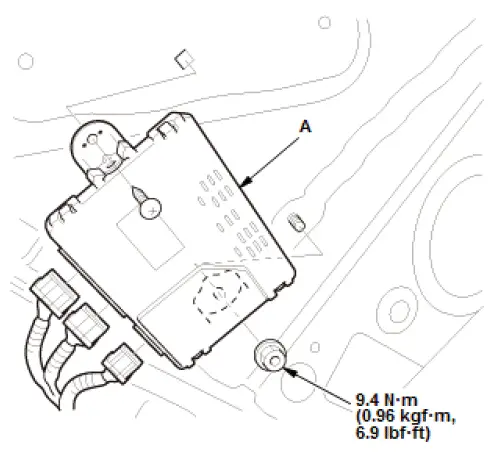

2. Remove the power tailgate control unit (A).

3. All Removed Parts - Install

1. Install the parts in the reverse order of removal.

4. Power Tailgate Control Unit - Reset (If necessary)
