Honda Pilot: Propeller Shaft Removal and Installation

Removal/Installation

1. Vehicle - Lift

2. Engine Undercover - Remove

3. Middle Floor Undercover - Remove

4. Fuel Tank Guard - Remove

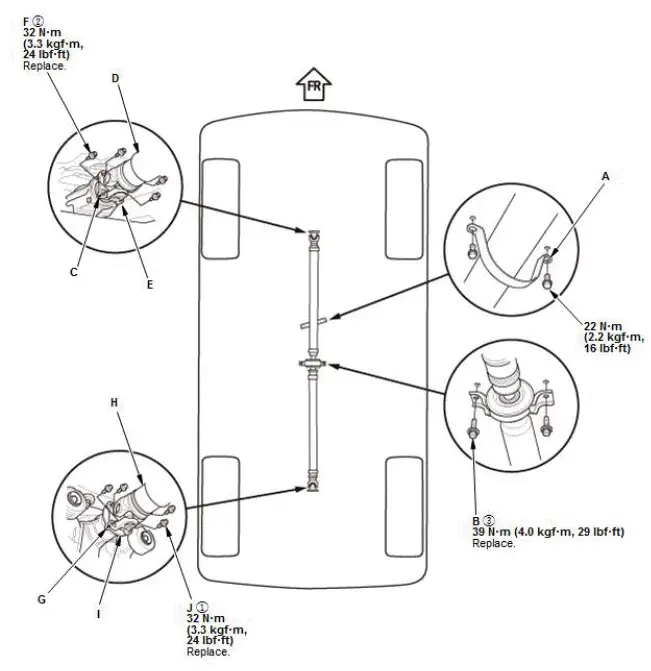

5. Propeller Shaft - Remove

1. Remove the propeller shaft protector (A).

2. Remove the center support bearing mounting bolts (B).
3. Make a reference mark (C) across the No. 1 propeller shaft (D) and the transfer companion flange (E).
4. Remove the No. 1 propeller shaft flange bolts (F).
5. Make a reference mark (G) across the No. 2 propeller shaft (H) and the rear differential companion flange (I).
6. Remove the No. 2 propeller shaft flange bolts (J).

6. All Removed Parts - Install

1. Install the parts in the reverse order of removal.
