Honda Pilot: Pulley End Crankshaft Oil Seal Replacement - In Car

Replacement

1. Timing Belt Drive Pulley - Remove

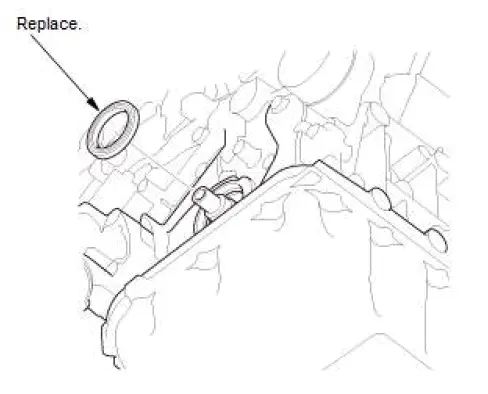

2. Pulley End Crankshaft Oil Seal - Remove

3. Pulley End Crankshaft Oil Seal - Install

1. Clean and dry the crankshaft oil seal housing.
2. Apply a light coat of new engine oil to the lip of the pulley end crankshaft oil seal.

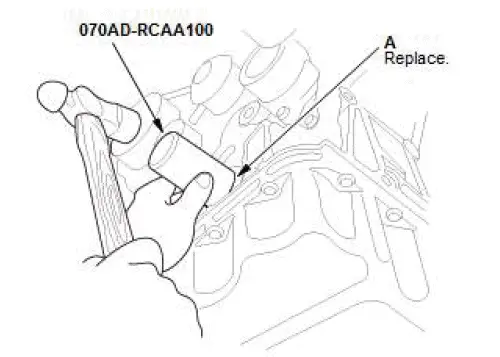

3. Using the oil seal driver, 64 mm, drive in the new pulley end crankshaft oil seal (A) until the oil seal driver bottoms on the oil pump.
4. Clean the excess oil off the crankshaft, and check that the pulley end oil seal lip is not distorted.

4. All Removed Parts - Install

1. Install the parts in the reverse order of removal.

Special Tool Required

• Oil Seal Driver, 64 mm 070AD-RCAA100
