Honda Pilot: Rear Control Arm Removal and Installation

Removal/Installation

1. Vehicle - Lift

2. Rear Wheel - Remove

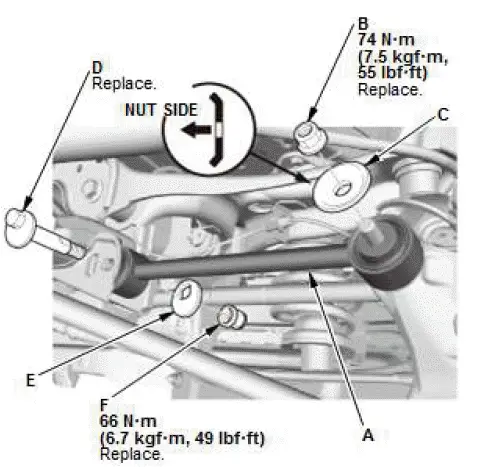

3. Control Arm - Remove

1. Remove the control arm (A) mounting self-locking nut (B) and the washer (C).

   NOTE: Use the new self-locking nut during reassembly.

2. Mark the cam positions of the adjusting bolt (D) and the adjusting cam plate (E) with the frame.
3. Remove the self-locking nut (F), the adjusting cam plate, and the adjusting bolt.

   NOTE: Use the new adjusting bolt and the new self-locking nut during reassembly.

4. All Removed Parts - Install

1. Install the control arm in the reverse order of removal, and note these items:

• Loosely install nuts and/or bolts to secure the bushings.

  Load the suspension with the vehicle's weight and tighten the nuts and/or bolts to the specified torque.

• Align the cam positions of the adjusting bolt and the adjusting cam plate with the marked positions on the frame when tightening the self-locking nut.
• Before installing the wheel, clean the mating surfaces on the brake disc/drum and the inside of the wheel.

5. Wheel Alignment - Check

Rear Control Panel Removal and Installation

Removal/Installation

1. Center Console Rear Trim - Remove

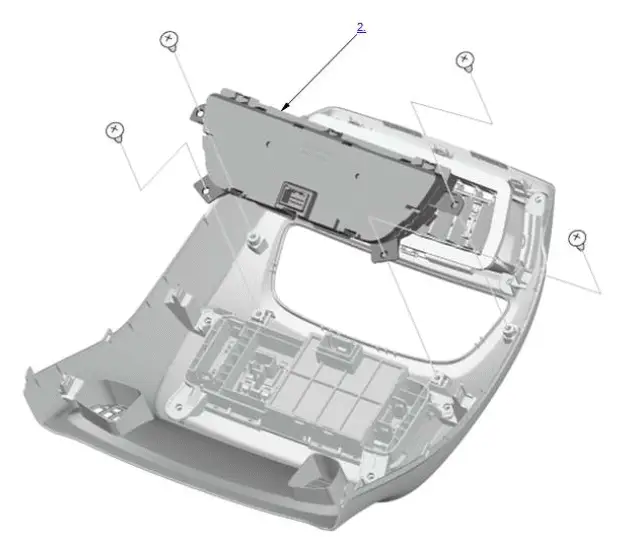

2. Rear Control Panel - Remove

3. All Removed Parts - Install

1. Install the parts in the reverse order of removal.
