Honda Pilot: Rear Bumper Trim Removal and Installation
Honda Pilot 2016-2022 (YF5/YF6) Service Manual / Remove, Install, Replace, Check info / Rear Bumper Trim Removal and Installation
Removal and Installation
1. Rear Bumper - Remove
2. Back-up light - Remove
3. Rear Bumper Trim - Remove

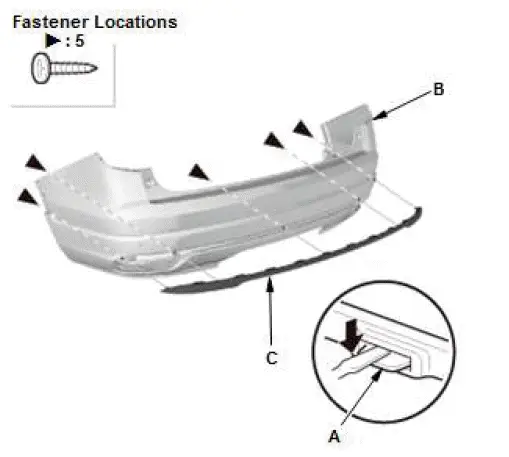

- Remove the screws.
- Release the hooks (A) from the back of the rear bumper (B), and then remove the rear bumper trim (C).
4. All Removed Parts - Install
- Install the parts in the reverse order of removal.
Rear Center Sensor Removal and Installation
Removal/Installation
1. Rear Bumper - Remove
2. Rear Center Sensor - Remove

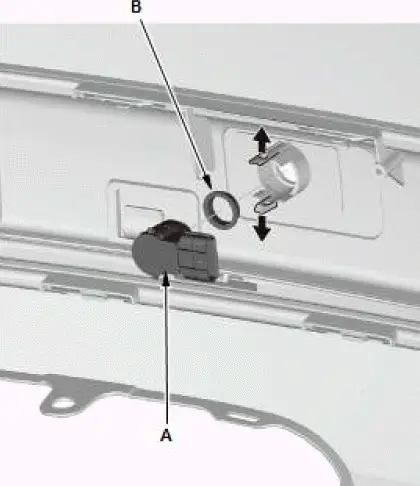

- Remove the rear center sensor (A).
- Remove the ring (B).
3. All Removed Parts - Install
- Install the parts in the reverse order of removal.
