Honda Pilot: Rear Controller and Screen Connector for Inputs and Outputs

Connector Index

Rear Controller and Screen Connector A (24P)
Rear Controller and Screen Connector B (12P)
Rear Controller and Screen Connector C (20P)
Rear Controller and Screen Connector D (20P) (with BD player unit)

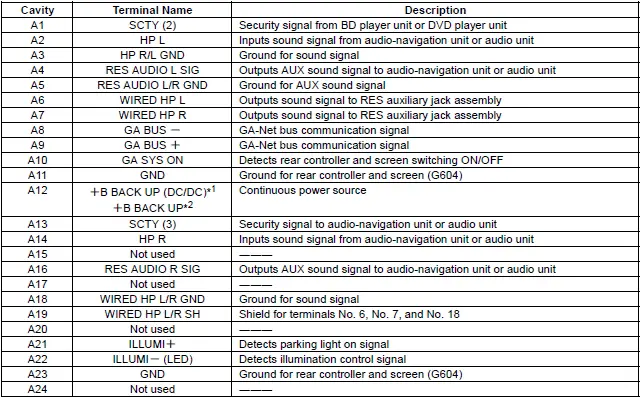

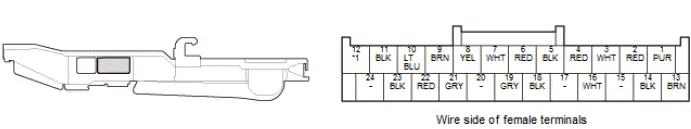

REAR CONTROLLER and SCREEN CONNECTOR A (24P)

*1: PUR (With auto idle stop system), WHT (Without auto idle stop system)

*1: With auto idle stop system
*2: Without auto idle stop system

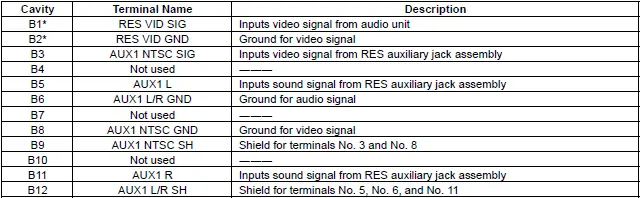

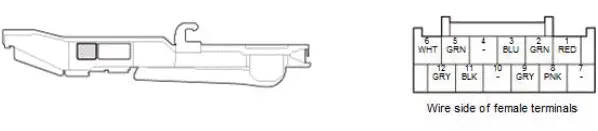

REAR CONTROLLER and SCREEN CONNECTOR B (12P)

*: With DVD player unit

REAR CONTROLLER and SCREEN CONNECTOR C (20P)

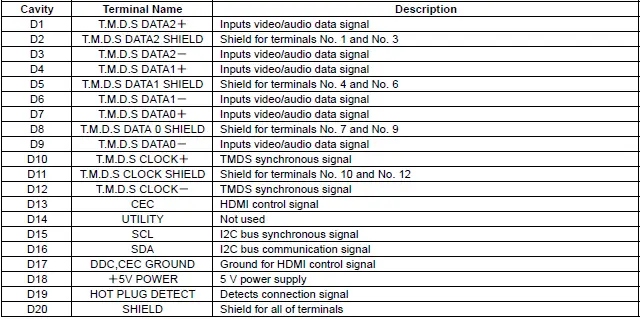

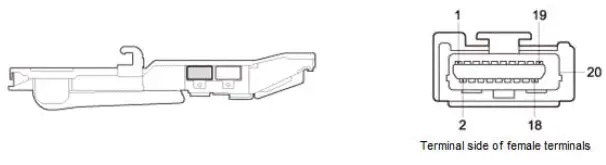

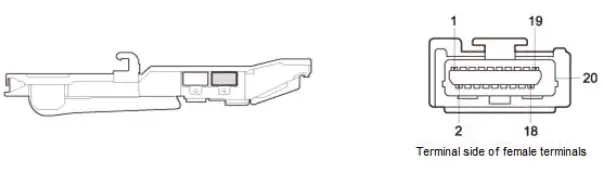

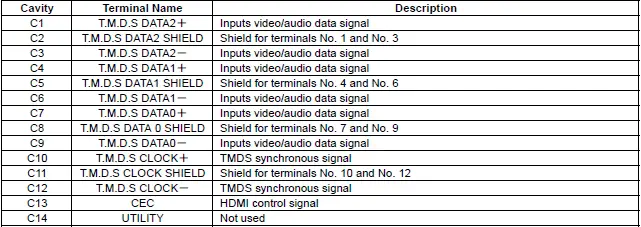

REAR CONTROLLER and SCREEN CONNECTOR D (20P) (with BD player)

Rearview Camera Connector for Inputs and Outputs

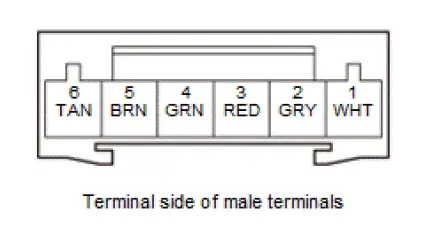

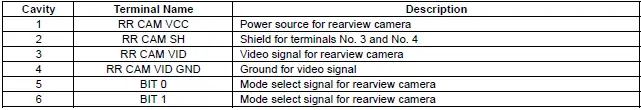

REARVIEW CAMERA 6P CONNECTOR

RES Auxiliary Jack Assembly Connector for Inputs and Outputs

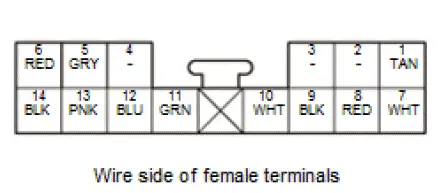

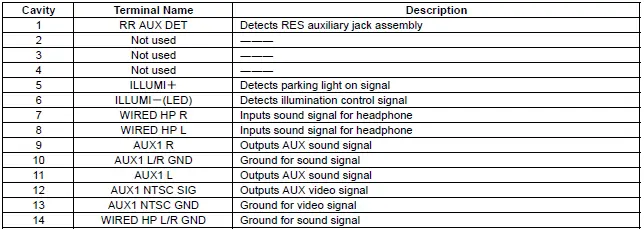

RES AUXILIARY JACK ASSEMBLY 14P CONNECTOR

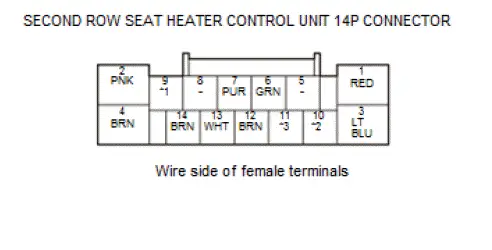

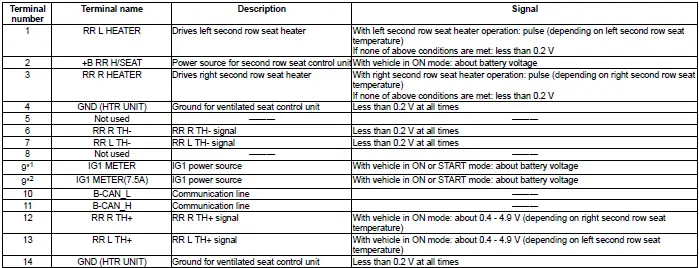

Second Row Seat Heater Control Unit Connector for Inputs and Outputs

*1: With ventilated seat
*2: Without ventilated seat

PCM Connector for Inputs and OutputsSRS Unit Connector for Inputs and Outputs
