Honda Pilot: SRS Unit Connector for Inputs and Outputs
Honda Pilot 2016-2022 (YF5/YF6) Service Manual / Connector input and output Info / SRS Unit Connector for Inputs and Outputs
Connector Index

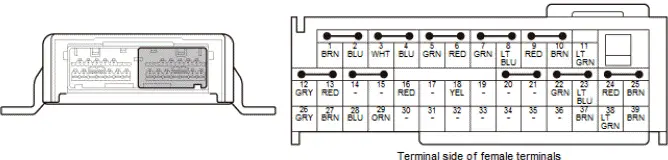

SRS unit connector A (39P)

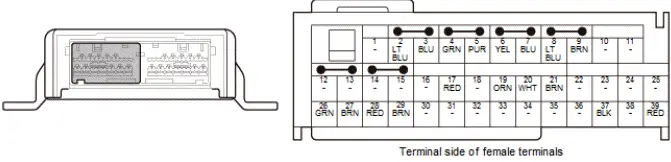

SRS unit connector B (39P)

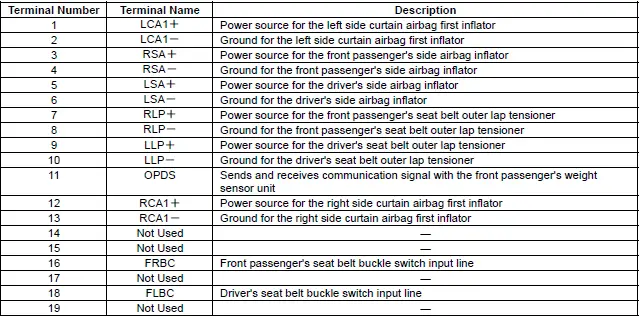

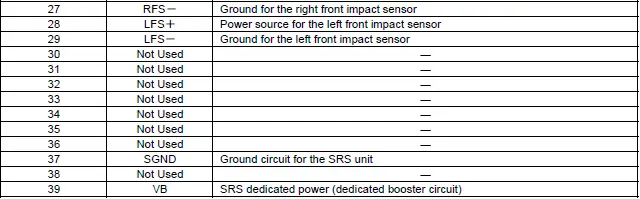

SRS Unit Inputs and Outputs at Connector A (39P)
NOTE: The wire colors of the SRS unit may be substituted in this illustration.
*1: 9-speed A/T
*2: 6-speed A/T

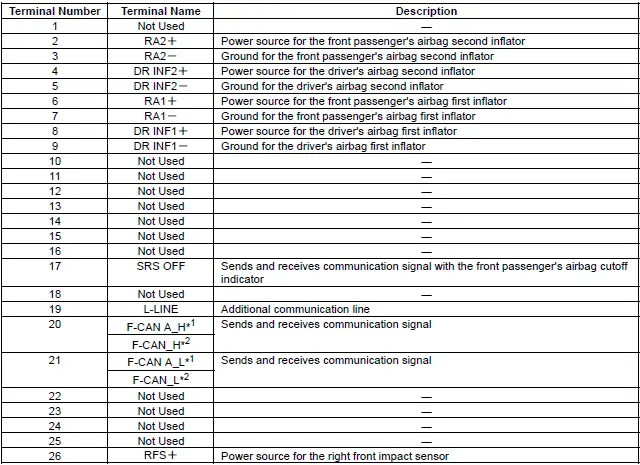

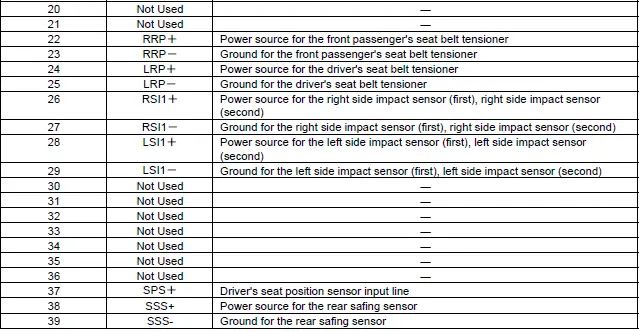

SRS Unit Inputs and Outputs at Connector B (39P)
NOTE: The wire colors of the SRS unit may be substituted in this illustration.
