Honda Pilot: Rear Door Sunshade Removal and Installation

Removal/Installation

1. Rear Door Panel - Remove

2. Rear Door Sunshade - Remove (For Some Models)

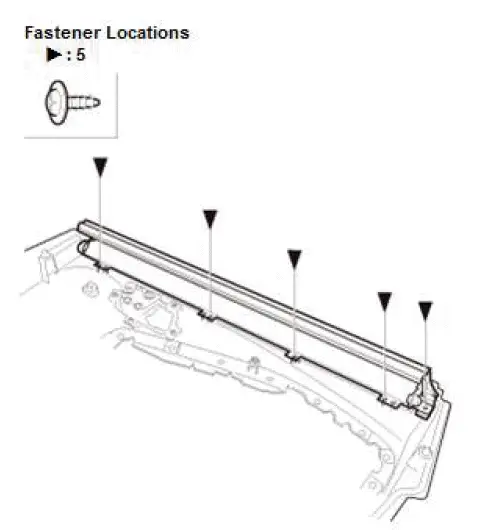

1. Remove the screws.

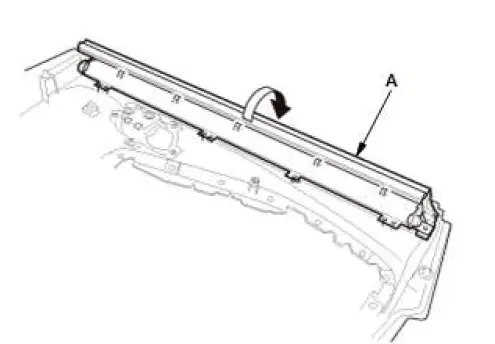

2. Remove the rear door sunshade (A).

3. Rear Door Sunshade Hook - Remove (For Some Models)

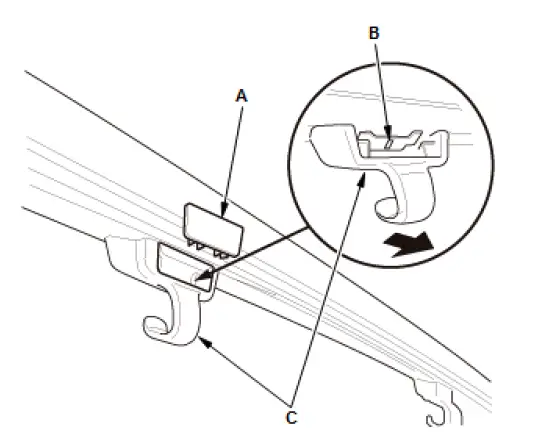

1. Remove the hook cover (A).
2. Push on the inner hook (B), and then pull back the rear door sunshade hook (C) to remove it.

4. All Removed Parts - Install

1. Install the parts in the reverse order of removal.
