Honda Pilot: Rear Door Weatherstrip Removal and Installation
Honda Pilot 2016-2022 (YF5/YF6) Service Manual / Remove, Install, Replace, Check info / Rear Door Weatherstrip Removal and Installation
Removal/Installation

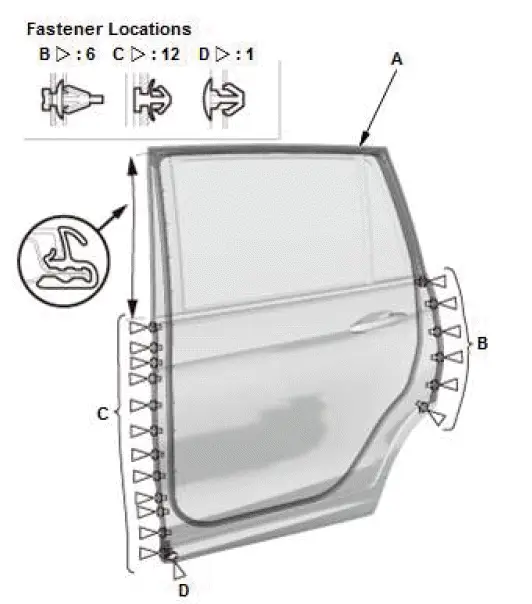

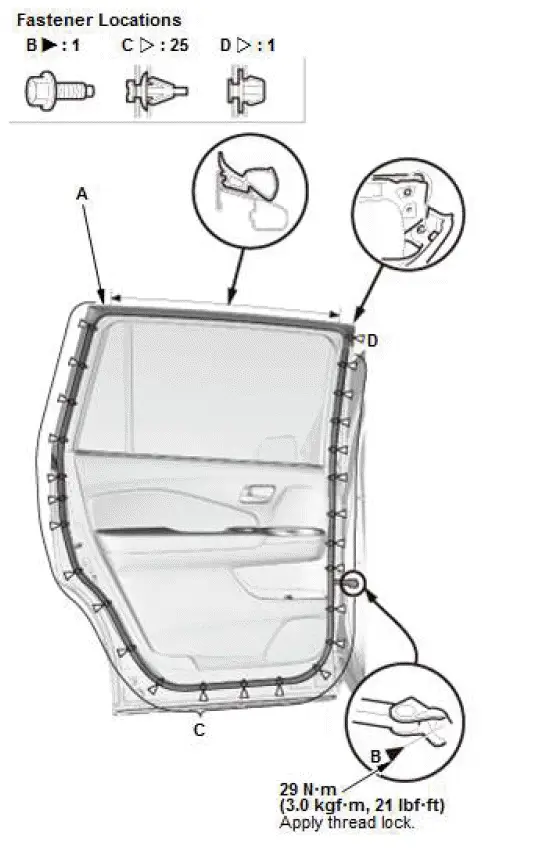

1. Rear Door Weatherstrip - Remove
- Remove the door checker mounting bolt at the B-pillar.
- Remove the rear door weatherstrip (A).
2. All Removed Parts - Install
- Install the parts in the reverse order of removal.
NOTE: Apply medium strength liquid thread lock to the door checker mounting bolt before installation.
3. Water Leaks - Check
Rear Door Wheel Arch Trim Removal and Installation
Removal/Installation

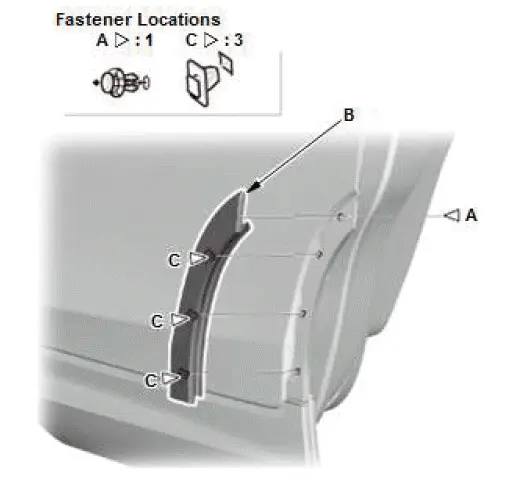

1. Rear Door Wheel Arch Panel - Remove
- Remove the clip (A), and then remove the rear door wheel arch panel (B).
2. All Removed Parts - Install
- Install the parts in the reverse order of removal.
