Honda Pilot: Rear Engine Mount Removal and Installation

Removal/Installation

1. Engine Undercover - Remove

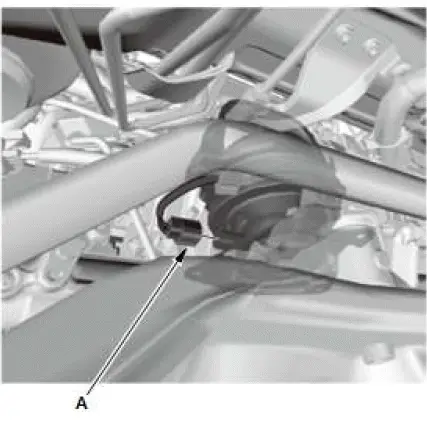

2. Connector (Rear Engine Mount Actuator) - Disconnect

1. Disconnect the connector (A).

3. Engine - Support

1. Lift and support the engine with a transmission jack and a wood block under the oil pan.

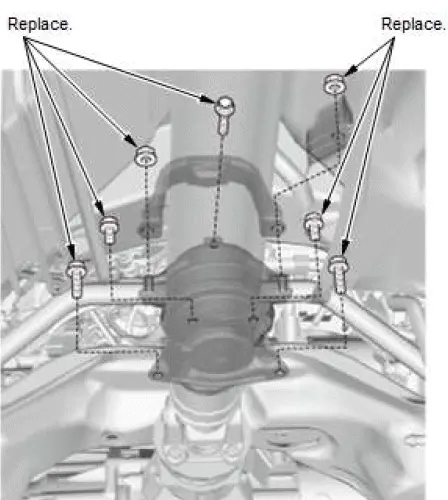

4. Rear Engine Mount Stop Mounting Nut and Rear Engine Mount Mounting Bolt - Remove

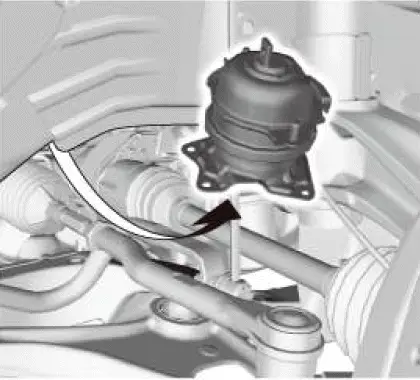

5. Rear Engine Mount - Remove

1. Remove the rear engine mount from the right front wheelhouse side.

6. All Removed Parts - Install

1. Install the parts in the reverse order of removal.

   NOTE: Do the mounts tightening procedure before tightening all of the mounts' bolts and nuts.
