Honda Pilot: Rear Entertainment System Description - System Diagram

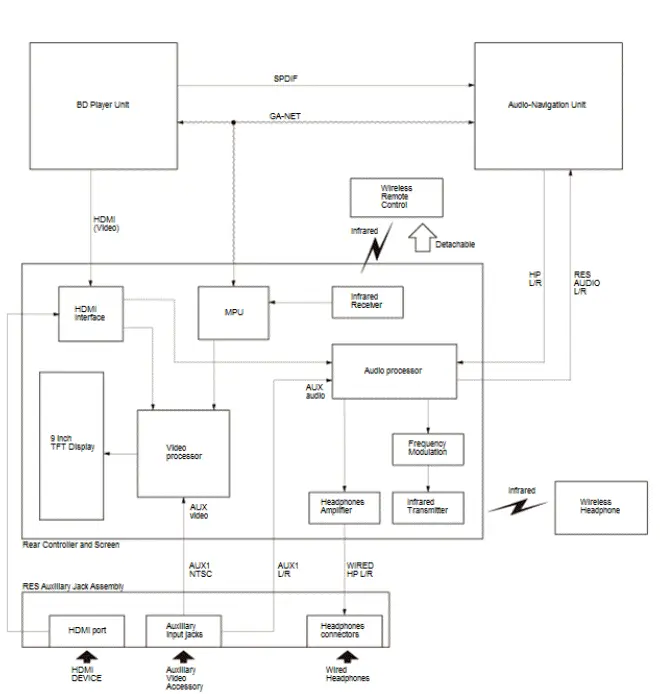

With Navigation

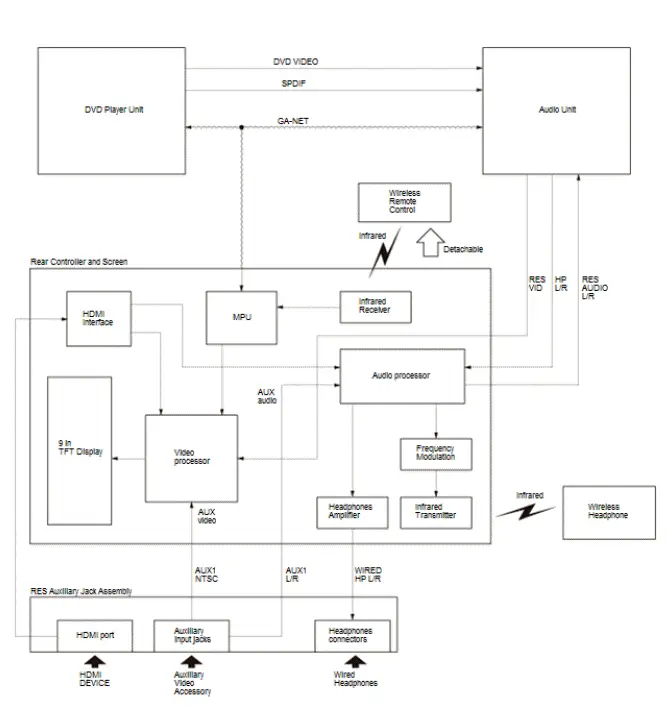

Without Navigation

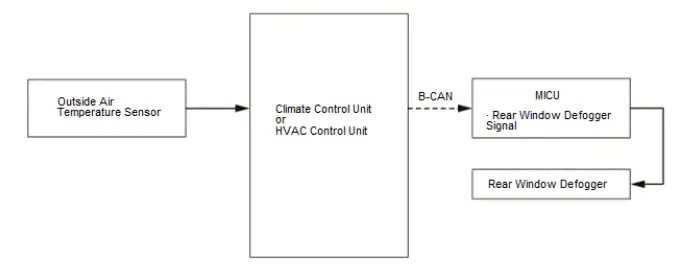

Rear Window Defogger System Description - Control/Function

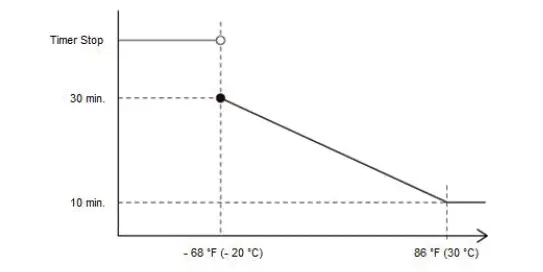

The Timer Function
The rear window defogger provides the timer control function that is controlled by the climate control unit. The timer control is operated by turning the vehicle to the ON mode, then turning on the rear window defogger switch. The timer operating time varies according to ambient temperature. If the rear window defogger switch is turned on when the timer is active, it toggles between ON and OFF every time the switch is pressed.

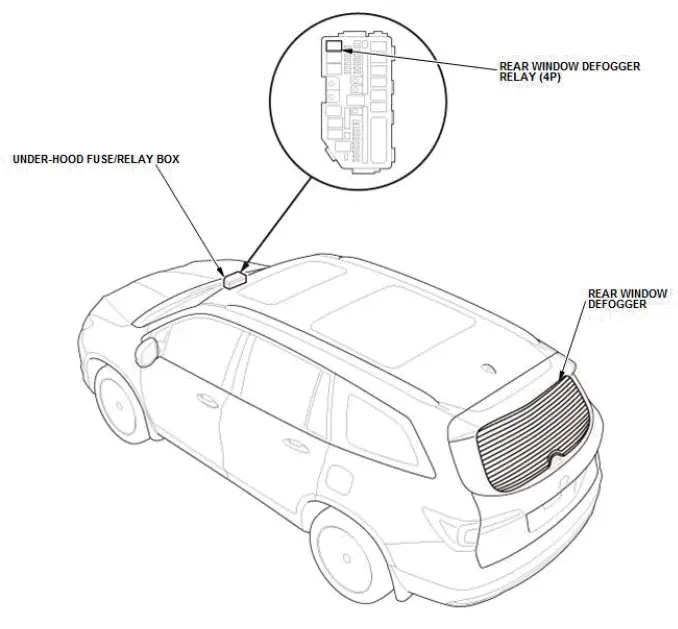

Rear Window Defogger System Description - Overview

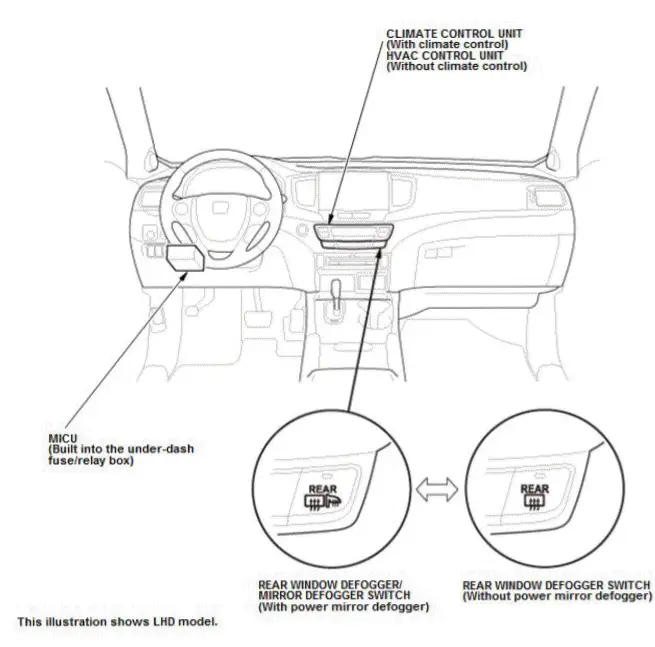

All models come equipped with the rear window defogger. The rear window defogger switch is integrated into the climate control switch.
