Honda Pilot: Rear Stabilizer Bar Removal and Installation

Removal/Installation

1. Vehicle - Lift

2. Rear Wheels - Remove

3. Spare tire - Remove

4. Stabilizer Link - Disconnect

1. Disconnect both sides of the stabilizer link from the stabilizer bar.

5. Stabilizer Bar - Remove

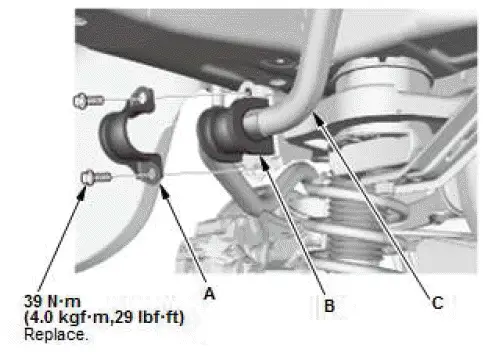

1. Remove the bushing holders (A).

   NOTE: Use the new flange bolts during reassembly.

2. Remove the bushings (B).
3. Remove the stabilizer bar (C).

6. All Removed Parts - Install

1. Install the stabilizer bar in the reverse order of removal, and note these items:

• Note the right and left direction of the stabilizer bar.
• Refer to stabilizer link removal/installation to connect the stabilizer bar to the links
• Before installing the wheel, clean the mating surfaces on the brake disc/drum and the inside of the wheel.

7. Wheel Alignment - Check
