Honda Pilot: Rear Suspension Stroke Sensor Removal and Installation
Honda Pilot 2016-2022 (YF5/YF6) Service Manual / Remove, Install, Replace, Check info / Rear Suspension Stroke Sensor Removal and Installation
Removal/Installation
1. Vehicle - Lift

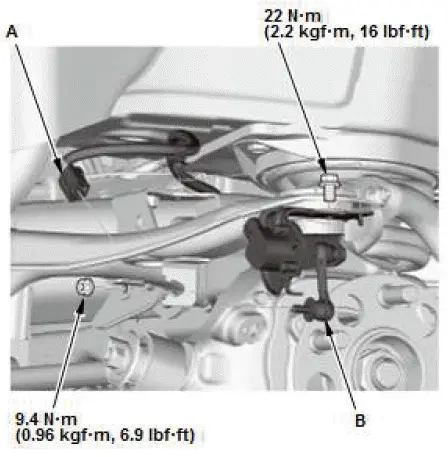

2. Rear Suspension Stroke Sensor - Remove
- Disconnect the connector (A).
- Remove the rear suspension stroke sensor (B).
3. All Removed Parts - Install
- Install the parts in the reverse order of removal.
4. Headlight Initial Position - Learn

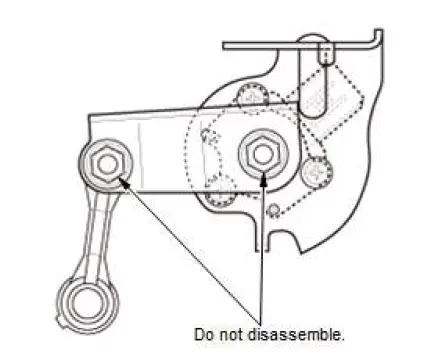

NOTE: If the original rear suspension stroke sensor is installed, confirm that all systems work properly.
