Honda Pilot: Rear Wheel Arch Protector Removal and Installation
Honda Pilot 2016-2022 (YF5/YF6) Service Manual / Remove, Install, Replace, Check info / Rear Wheel Arch Protector Removal and Installation
Removal/Installation
1. Rear Wheel Arch Protector - Remove
- Remove the screws.

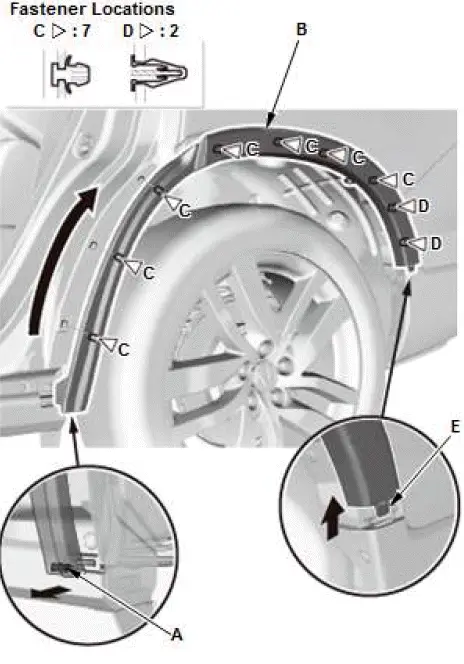

- Release the hook (A) from the front side of the rear wheel arch protector (B).
- Release the clips (C, D).
- Release the hook (E), and then remove the rear wheel arch protector.
Rear Wheelhouse Gusset Removal and Installation
Removal/Installation
1. Cargo Floor Board Support - Remove
2. Third Row Seat - Remove
3. Rear Side Trim Panel - Remove

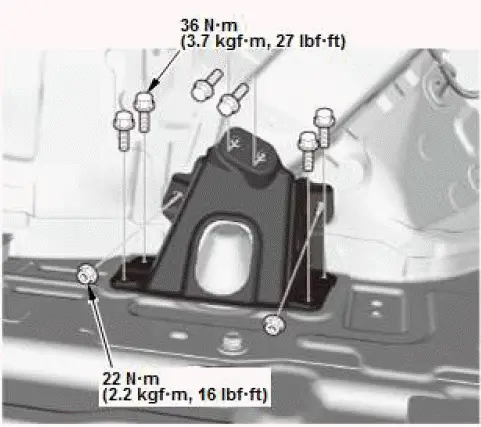

4. Rear Wheelhouse Gusset - Remove
5. All Removed Parts - Install
- Install the parts in the reverse order of removal.
