Honda Pilot: Seat Belt Inspection

Inspection

1. Seat Belt - Inspection (In Vehicle)

In-Vehicle

1. Check that the seat belt is not twisted or caught on anything.
2. After installing the anchors, check for free movement on the anchor bolts. If necessary, remove the anchor bolts, and check that the washers and other parts are not damaged or improperly installed.
3. Check the seat belts for damage or discoloration. Clean with a shop towel if necessary. Use only soap and water to clean the seat belts.

   NOTE: Dirt buildup in the loops of the upper anchors can cause the seat belts to retract slowly. Wipe the inside of the loops with a shop towel dampened with isopropyl alcohol.

4. Check that the seat belt does not lock when pulled out slowly. The seat belt is designed to lock only during a sudden stop or impact.
5. Make sure that the seat belt will retract automatically when released.
6. For except front driver's seat belt, check the seat belt retractor locking mechanism automatic locking retractor (ALR). This function is for securing child seats. (for some models)

1. Pull the seat belt all the way out to engage the ALR.

   The seat belt should retract with a ratcheting sound, but not extend. This is normal.

2. To disengage the ALR, release the seat belt and allowit to fully retract, then pull the seat belt out partway.

   The seat belt should retract and extend normally.

7. Replace the seat belt with a new assembly if there is any abnormality. Do not disassemble any part of the seat belt for any reason.

2. Seat Belt - Inspection (Out of Vehicle )

Out of Vehicle

SRS components are located in this area. Review the SRS component locations and the precautions and procedures before doing repairs or service.

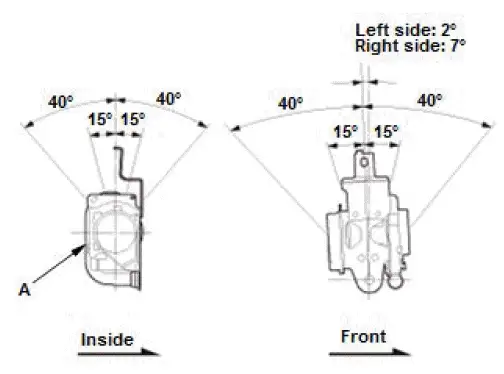

Front

Retractor

1. Before installing the retractor, check that the seat belt can be pulled out freely.

2. Make sure that the seat belt does not lock when the retractor (A) is leaned slowly up to 15 º from the mounted position. The seat belt should lock when the retractor is leaned over 40 º. Do not attempt to disassemble the retractor.

3. Replace the seat belt with a new assembly if there is any abnormality. Do not disassemble any part of the seat belt for any reason.

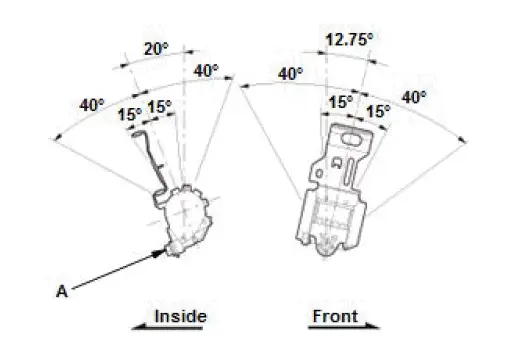

Second row

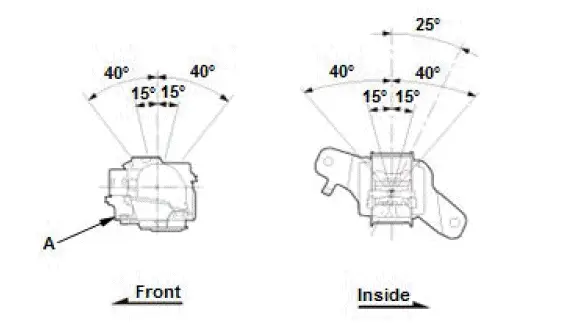

Center Second row

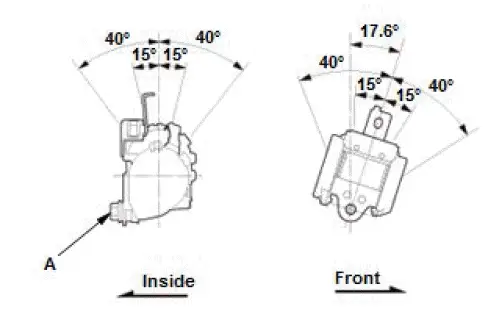

Third row

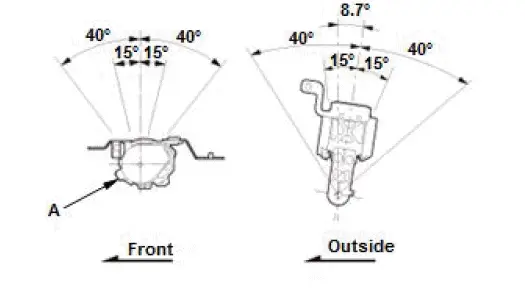

Center third row
