Honda Pilot: Rocker Arm and Shaft Disassembly, Reassembly, and Inspection

Disassembly/Reassembly

1. Rocker Arm Assembly - Disassemble

NOTE:

• Identify parts as they are removed so they can be reinstalled in their original locations.
• Inspect the rocker shafts and rocker arms.
• When removing the rocker arm assembly, do not remove the mounting bolts. The bolts will keep the rocker arms, the rocker shaft holder, and the rocker arm oil control valve on the shaft.
• If the rocker shaft does not remove by hand, remove the rocker shaft by heating the rocker shaft holder.
• Bundle the rocker arms with rubber bands to keep them together as a set.

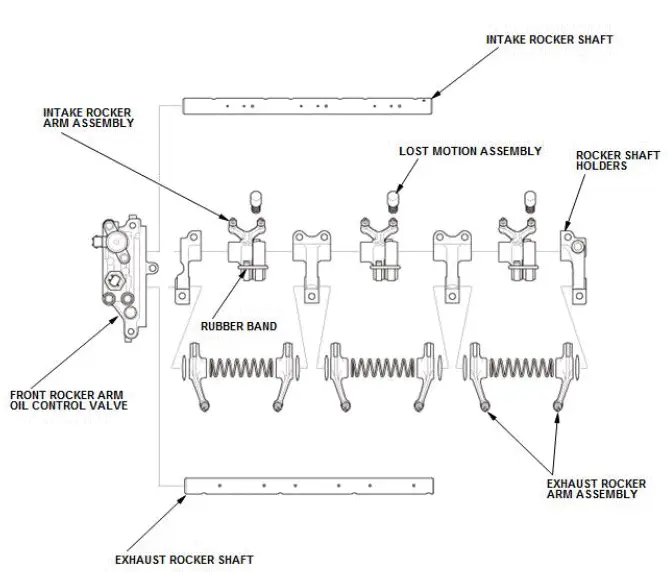

Front

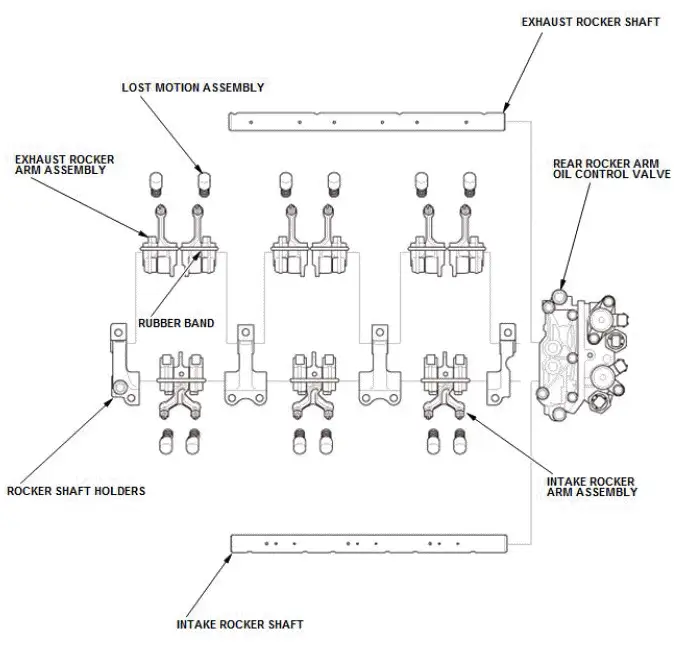

Rear

2. All Disassembled Parts - Reassemble

1. Reassemble the parts in the reverse order of disassembly.

NOTE:

• If reused, the rocker arms must be installed in their original locations.
• When installing the rocker arm assembly, do not remove the mounting bolts. The bolts will keep the rocker arms, the rocker shaft holder, and the rocker arm oil control valve on the shaft.
• If the rocker shaft does not install by hand, install the rocker shaft by heating the rocker shaft holder.
• Bundle the rocker arms with rubber bands to keep them together as a set, and remove the bands after the rocker arms have been installed.
• Prior to reassembling, clean all the parts in solvent, dry them, and apply new engine oil to all the contact points, the bearing surfaces, and the lost motion assembly.
• When replacing the rocker arm assembly, remove the fastening hardware from a new rocker arm assembly.

Inspection

1. Rocker Arm and Shaft - Inspect

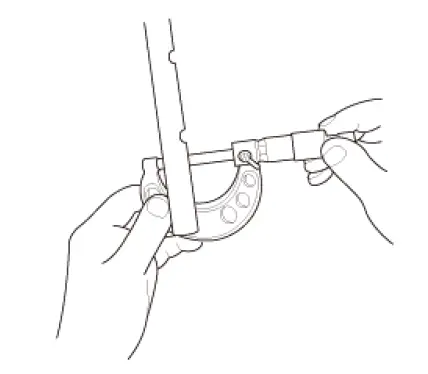

1. Measure the diameter of the shaft at the first rocker location.

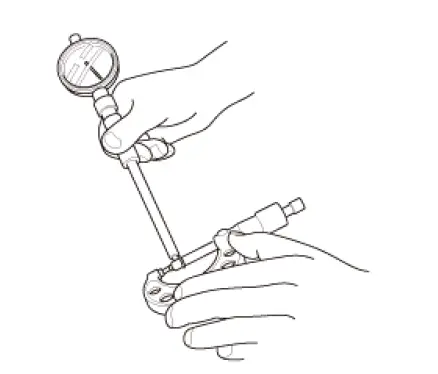

2. Zero the dial indicator to the shaft diameter.

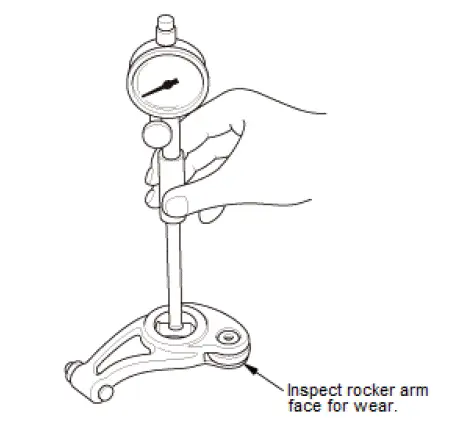

3. Measure the inside diameter of the rocker arm, and check it for an out-of-round condition.

Rocker Arm-to-Shaft Clearance

  Standard (New): 0.015－0.046 mm (0.00059－ 0.00181 in)

  Service Limit: 0.046 mm (0.00181 in)

4. Repeat for all rockers and both shafts. If the clearance is over the limit, replace the rocker shaft and all over-tolerance rocker arms. If any variable cylinder management rocker arm needs replacement, replace all rocker arms in that set.

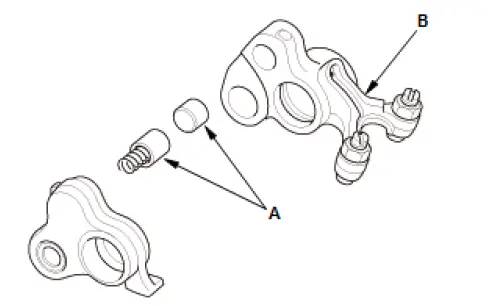

FRONT (INTAKE)

VTEC Rocker Arms

5. Inspect the rocker arm pistons (A). Slide them into the rocker arms. If they do not move smoothly, replace the rocker arm set.

NOTE:

• Apply new engine oil to the rocker arm pistons when reassembling.
• When removing the rocker arm pistons from the intake primary rocker arm (B) and the intake secondary L and H rocker arms (C), carefully apply air pressure to the oil passage of the rocker arm.

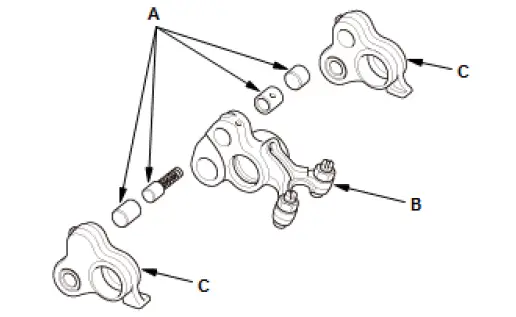

REAR (INTAKE)

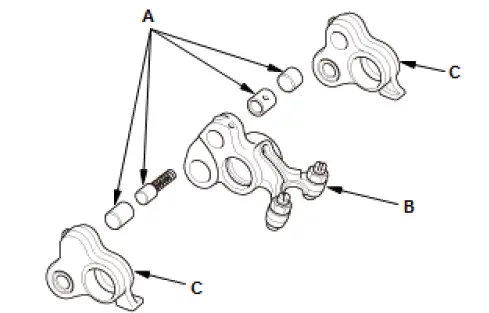

REAR (INTAKE)

Variable Cylinder Management Rocker Arms

6. Inspect the rocker arm pistons (A). Slide them into the rocker arms. If they do not move smoothly, replace the rocker arm set.

NOTE:

• Apply new engine oil to the rocker arm pistons when reassembling.
• When removing the rocker arm pistons from the intake primary rocker arm (B), intake secondary L and H rocker arms (C) and the exhaust secondary rocker arms (D), carefully apply air pressure to the oil passage of the rocker arm.

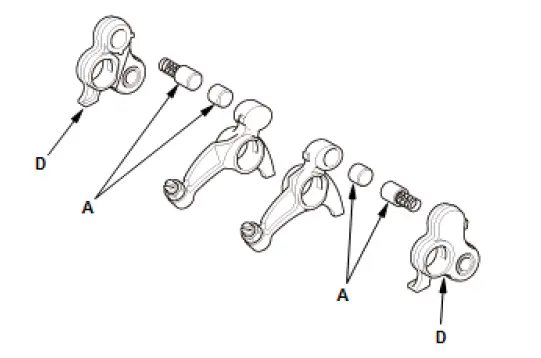

REAR (EXHAUST)
