Honda Pilot: Seat Heater Replacement

Replacement

SRS components are located in this area. Review the SRS component locations and the precautions and procedures before doing repairs or service.

Front Seat Cushion Heater

1. Front Seat Cushion Cover - Remove

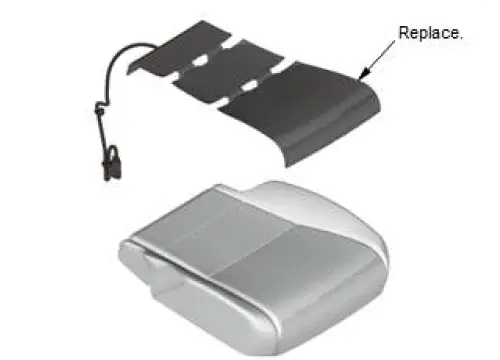

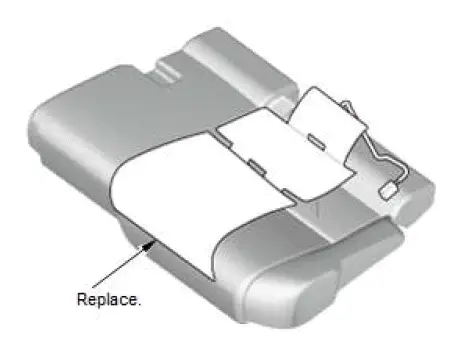

2. Front Seat Cushion Heater - Remove

NOTE: The front seat cushion heater is glued to the front seat cushion pad. When removing it, take care not to damage the front seat cushion pad.

3. Front Seat Cushion Heater - Replacement

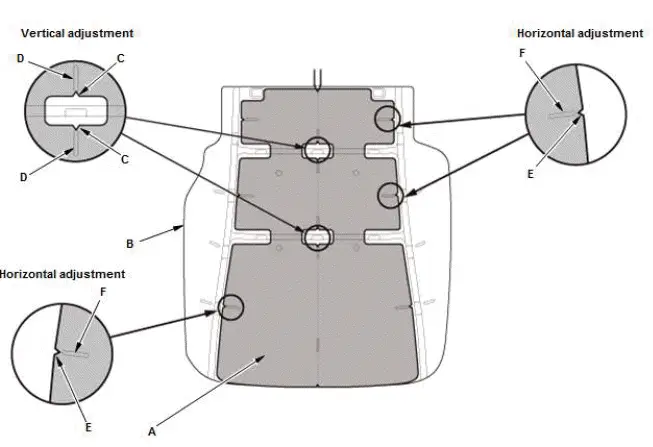

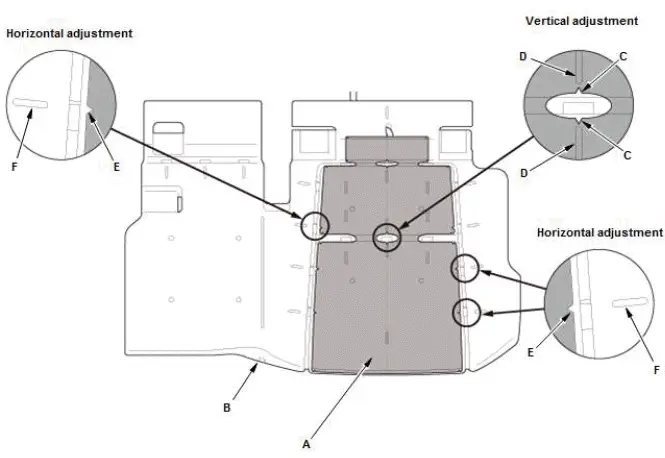

1. Attach the seat heater (A) to the seat cushion (B).
   • Vertical adjustment: Overlap the positioning mark (C) on the seat heater side and the location mark (D) on the seat cushion side
   • Horizontal adjustment: Overlap the positioning mark (E) on the seat heater side and the location mark (F) on the seat cushion side

4. All Removed Parts - Install

1. Install the parts in the reverse order of removal.

Front Seat-Back Heater

1. Front Seat-Back Cover - Remove

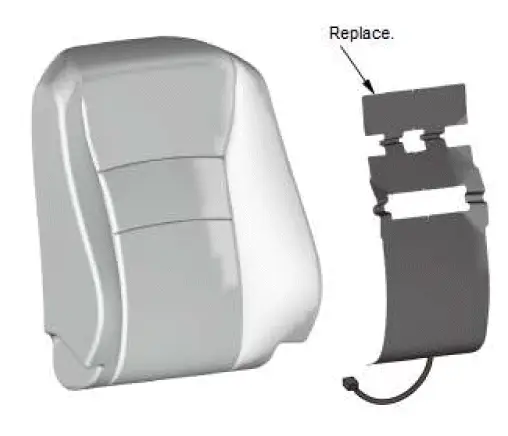

2. Front Seat-Back Heater - Remove

NOTE: The front seat-back heater is glued to the front seat- back pad. When removing it, take care not to damage the front seat-back pad.

3. Front Seat-back Heater - Replacement

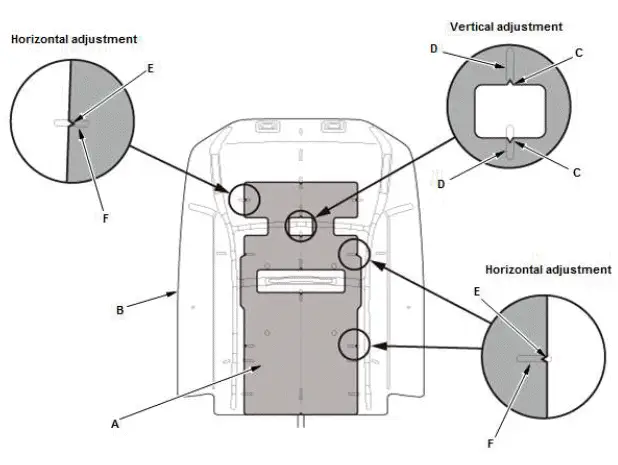

1. Attach the seat heater (A) to the seat back (B).
   • Vertical adjustment: Overlap the positioning mark (C) on the seat heater side and the location mark (D) on the seat back side
   • Horizontal adjustment: Overlap the positioning mark (E) on the seat heater side and the location mark (F) on the seat back side

1. Install the parts in the reverse order of removal.

Second Row Seat Cushion Heater (Bench Seat)

1. Second Row Seat Cushion Cover - Remove

2. Second Row Seat Cushion Heater - Remove

Left Second Row Seat

Right Second Row Seat

NOTE: The rear seat cushion heater is glued to the rear seat cushion pad. When removing it, take care not to damage the rear seat cushion pad.

3. Second Row Seat Cushion Heater - Replacement

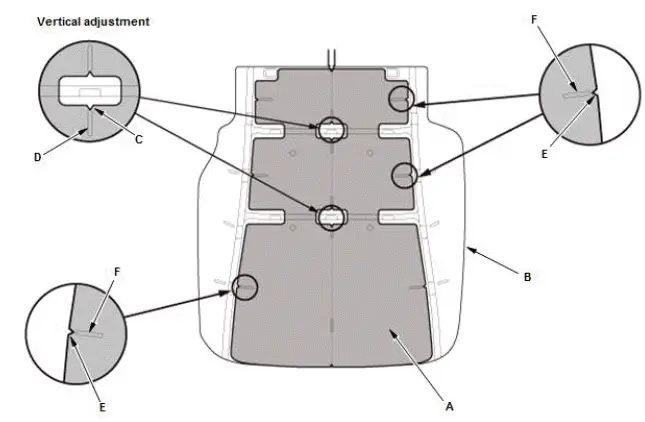

1. Attach the seat heater (A) to the seat cushion (B).

• Vertical adjustment: Overlap the positioning mark (C) on the seat heater side and the location mark (D) on the seat cushion side
• Horizontal adjustment: Overlap the positioning mark (E) on the seat heater side and the location mark (F) on the seat cushion side

Left Second Row Seat

Right Second Row Seat

4. All Removed Parts - Install

1. Install the parts in the reverse order of removal.

Second Row Seat Cushion Heater (Captain Seat)

1. Second Row Seat Cushion Cover - Remove

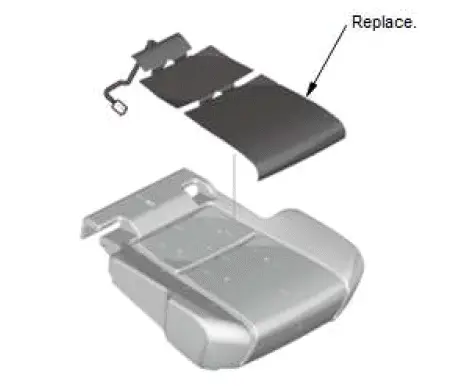

2. Second Row Seat Cushion Heater - Remove

NOTE: The rear seat cushion heater is glued to the rear seat cushion pad. When removing it, take care not to damage the rear seat cushion pad.

3. Second Row Seat Cushion Heater - Replacement

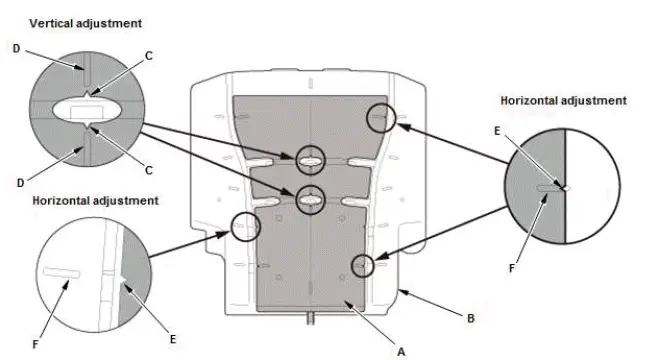

1. Attach the seat heater (A) to the seat cushion (B).
   • Vertical adjustment: Overlap the positioning mark (C) on the seat heater side and the location mark (D) on the seat cushion side
   • Horizontal adjustment: Overlap the positioning mark (E) on the seat heater side and the location mark (F) on the seat cushion side

4. All Removed Parts - Install

1. Install the parts in the reverse order of removal.

Second Row Seat-Back Heater

1. Second Row Seat-Back Cover - Remove

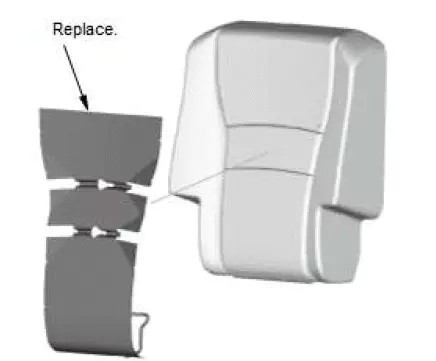

2. Second Row Seat-Back Heater - Remove

NOTE: The rear seat-back heater is glued to the rear seat- back pad. When removing it, take care not to damage the rear seat-back pad.

3. Second Row Seat Back Heater - Replacement

1. Attach the seat heater (A) to the seat back (B).
   • Vertical adjustment: Overlap the positioning mark (C) on the seat heater side and the location mark (D) on the seat back side
   • Horizontal adjustment: Overlap the positioning mark (E) on the seat heater side and the location mark (F) on the seat back side

4. All Removed Parts - Install

1. Install the parts in the reverse order of removal.
