Honda Pilot: Seat Belt Shoulder Anchor Adjuster Removal and Installation

Removal/Installation

1. Front Seat Belt Upper Anchor Bolt - Remove

2. B-Pillar Upper Trim - Remove

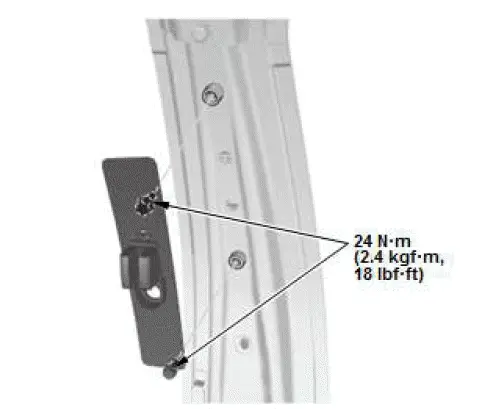

3. Front Seat Shoulder Anchor Adjuster - Remove

4. All Removed Parts - Install

1. Install the parts in the reverse order of removal.

Seat Heater Replacement - Ventilated Seats

Replacement

SRS components are located in this area. Review the SRS component locations and the precautions and procedures before doing repairs or service.

Front Seat Cushion Heater

1. Front Seat Cushion Cover - Remove

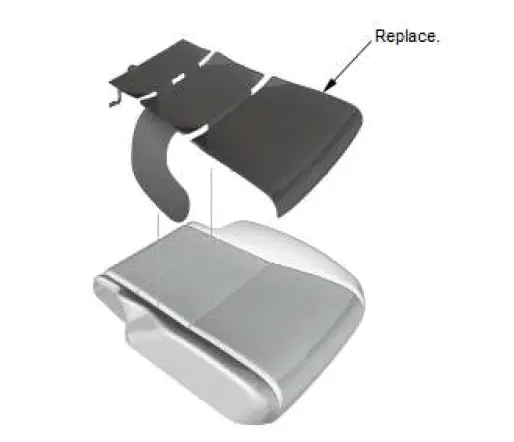

2. Front Seat Cushion Heater - Remove

NOTE: The front seat cushion heater is glued to the front seat cushion pad. When removing it, take care not to damage the front seat cushion pad.

3. Front Seat Cushion Heater - Install

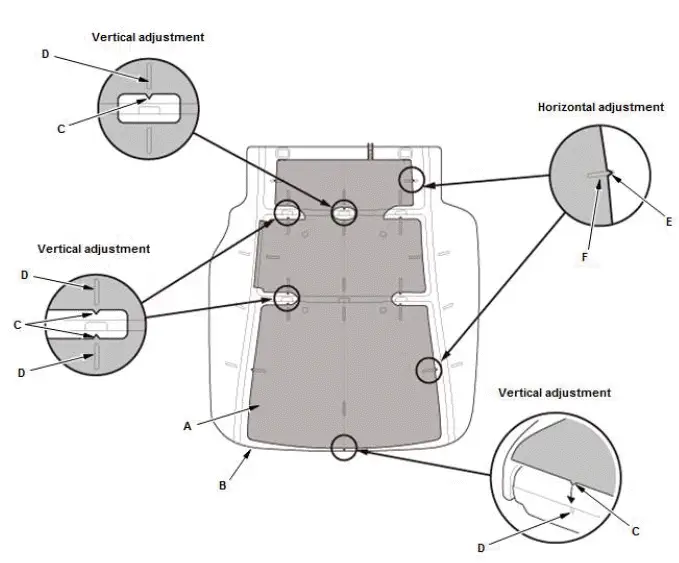

1. Attach the seat heater (A) to the seat cushion (B).
   • Vertical adjustment: Overlap the positioning mark (C) on the seat heater side and the location mark (D) on the seat cushion side
   • Horizontal adjustment: Overlap the positioning mark (E) on the seat heater side and the location mark (F) on the seat cushion side

4. All Removed Parts - Install

1. Install the parts in the reverse order of removal.

Front Seat-Back Heater

1. Front Seat-Back Cover - Remove

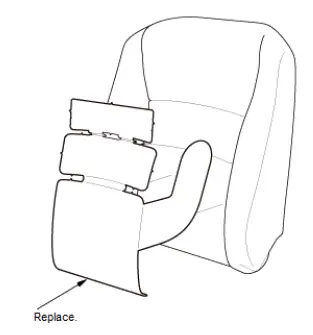

2. Front Seat-Back Heater - Remove

NOTE: The front seat-back heater is glued to the front seat- back pad. When removing it, take care not to damage the front seat-back pad.

3. Front Seat-back Heater - Install

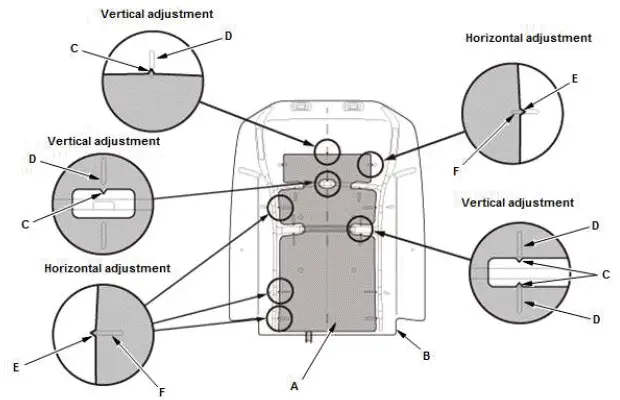

1. Attach the seat heater (A) to the seat cushion (B).
   • Vertical adjustment: Overlap the positioning mark (C) on the seat heater side and the location mark (D) on the seat cushion side
   • Horizontal adjustment: Overlap the positioning mark (E) on the seat heater side and the location mark (F) on the seat cushion side
