SRS components are located in this area. Review the SRS component locations and the precautions and procedures before doing repairs or service.

Driver's Seat

1. Driver's Seat - Remove

2. Driver's Seat Heater - Test

Seat cushion heater

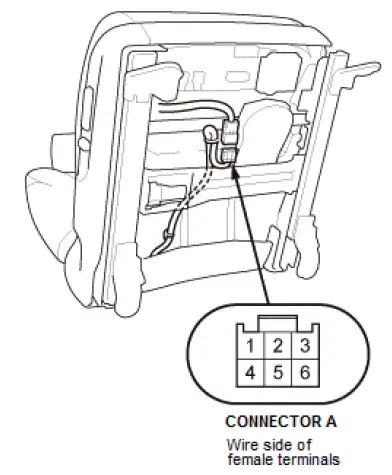

1. Disconnect the connector A.

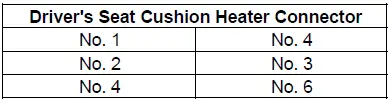

2. Check for continuity between the terminals according to the table.

3. If the continuity is not as specified, replace the driver's seat cushion heater.

Seat-back heater

4. Remove the driver's seat-back cover as needed.

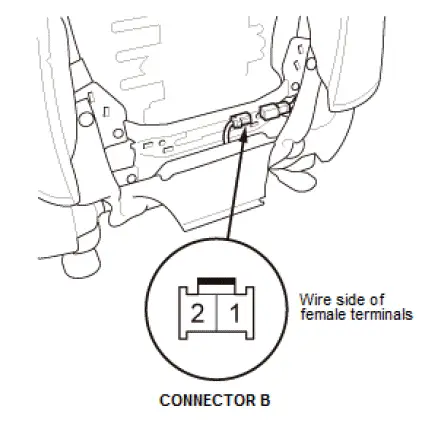

5. Disconnect the connector B.
6. Check for continuity between the terminals according to the table.

7. If the continuity is not as specified, replace the driver's seat-back heater.

3. All Removed Parts - Install

1. Install the parts in the reverse order of removal.

Front Passenger's Seat

1. Front Seat - Remove

2. Front Passenger's Seat Heater - Test

Seat cushion heater

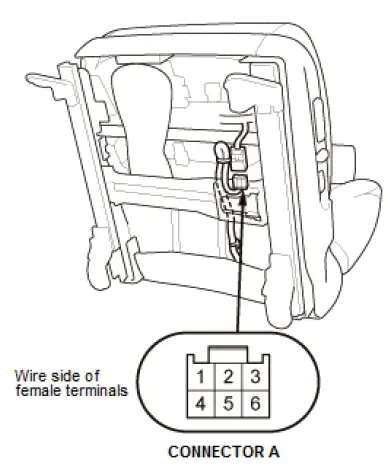

1. Disconnect the connector A.

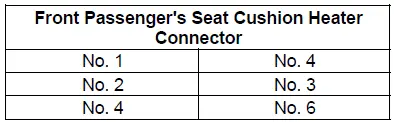

2. Check for continuity between the terminals according to the table.

3. If the continuity is not as specified, replace the front passenger's seat cushion heater.

Seat-back heater

4. Remove the front passenger's seat-back cover as needed.

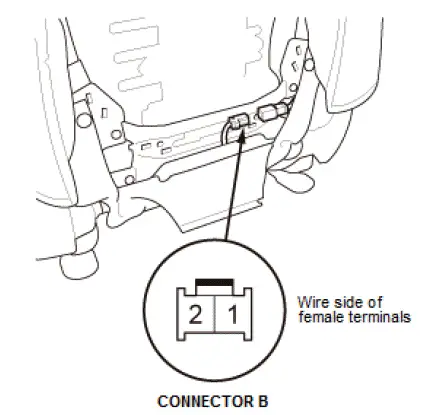

5. Disconnect the connector B.
6. Check for continuity between the terminals according to the table.

7. If the continuity is not as specified, replace the front passenger's seat-back heater.

3. All Removed Parts - Install

1. Install the parts in the reverse order of removal.
