Honda Pilot: Seat Heater Switch Test

Test

1. Dashboard Center Lower Panel / Player Unit Assembly - Remove

1. Remove one of the following items depending on the model.
   • Dashboard center lower panel
   • CD player unit
   • DVD player unit
   • BD player unit

2. Rear Seat Heater Switch - Test

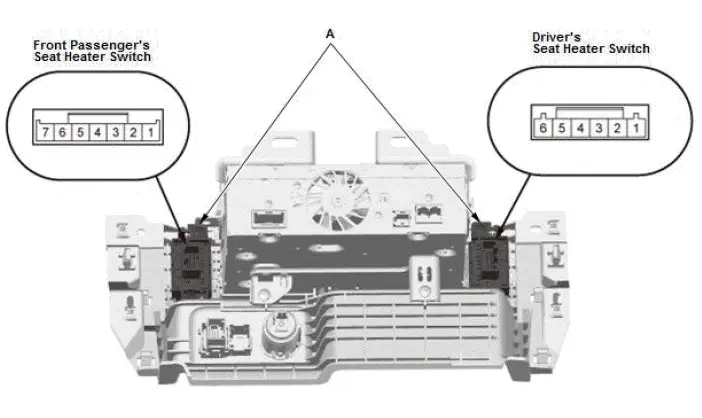

1. Check the driver's or front passenger's seat heater switch (A) according to the table.

NOTE:

• When an LED is located between terminals, check if the LED illuminates by connecting power and ground to the LED.
• Note this important operating characteristic; diode bias causes a diode to fully conduct electricity in one direction (forward), while not at all in the opposite direction (reverse).

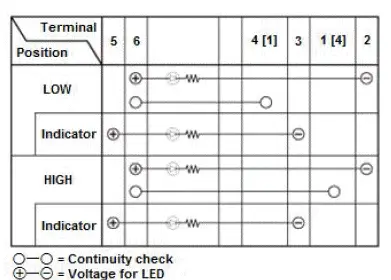

Driver's and front passenger's seat heater switch

[]: Front passenger's

2. If the result is not as specified, replace the rear seat heater switch.

3. All Removed Parts - Install

1. Install the parts in the reverse order of removal.
