Honda Pilot: Second Row Seat Belt Buckle Removal and Installation

Removal/Installation

Left/Right Seat Belt Buckle

1. Second Row Seat - Remove

2. Second Seat Recline Inner Cover - Remove

3. Second Row Seat belt Buckle - Remove

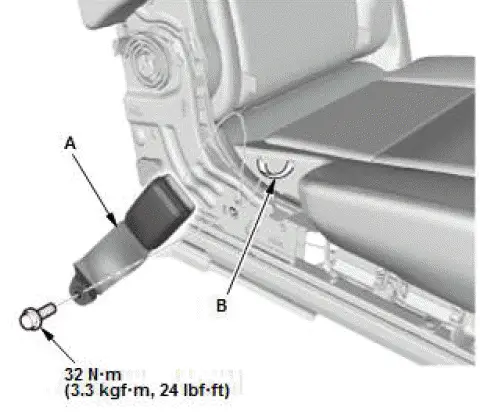

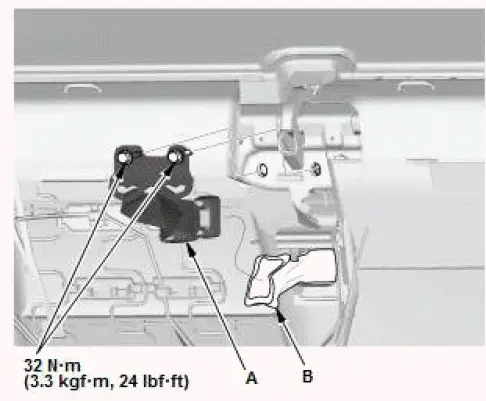

1. Release the seat belt buckle (A) from the elastic strap (B), and then remove the seat belt buckle.

4. All Removed Parts - Install

1. Install the parts in the reverse order of removal.

Center Seat Belt Buckle

1. Second Row Seat - Remove

2. Second Row Seat belt Buckle - Remove

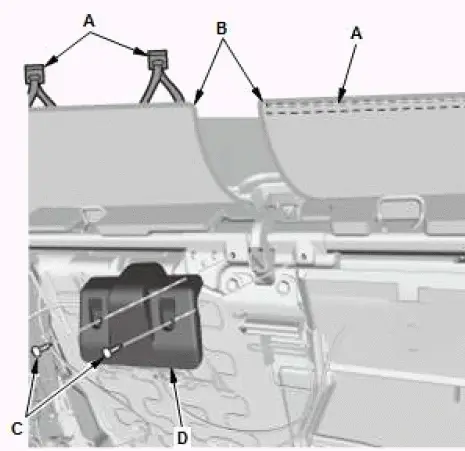

1. Release the hooks (A), and then turn over the seat cushion cover (B).
2. Remove the screws (C), and then remove the ISO-FIX center belt cover (D).

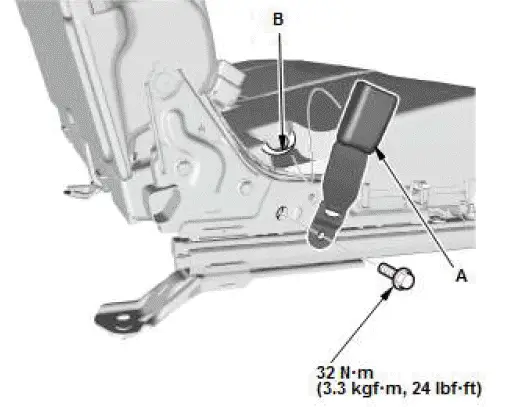

3. Release the seat belt buckle (A) from the seat cushion cover (B), and then remove the seat belt buckle.

3. All Removed Parts - Install

1. Install the parts in the reverse order of removal.

Second Row Seat Belt Buckle Removal and Installation

Removal/Installation

1. 2nd Row Center Console - Remove

2. Second Seat Recline Inner Cover - Remove

3. Second Row Seat belt Buckle - Remove

1. Release the seat belt buckle (A) from the elastic strap (B), and then remove the seat belt buckle.

4. All Removed Parts - Install

Right side seat belt buckle anchor bolt

1. Install the parts reverse order of removal.

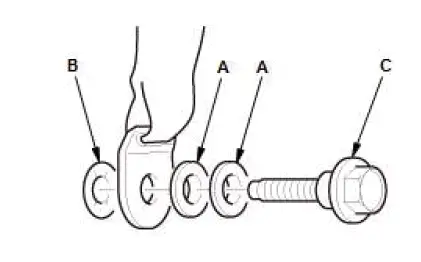

   NOTE: Assemble the washers (A) and the toothed lock washer (B) on the seat belt buckle bolt (C) as shown.
