Honda Pilot: Second Row Seat Belt Removal and Installation

Removal/Installation

Left/Right Seat Belt

1. Second Row Seat Belt Upper Anchor Bolt - Remove

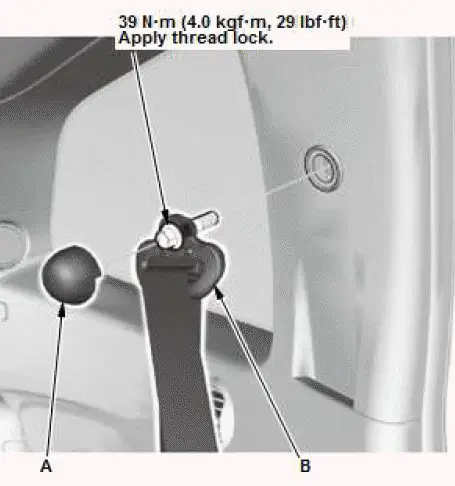

1. Remove the cap (A), and then remove the second row seat belt upper anchor (B).

2. Rear Side Trim Panel - Remove

3. A/C Side Duct - Remove

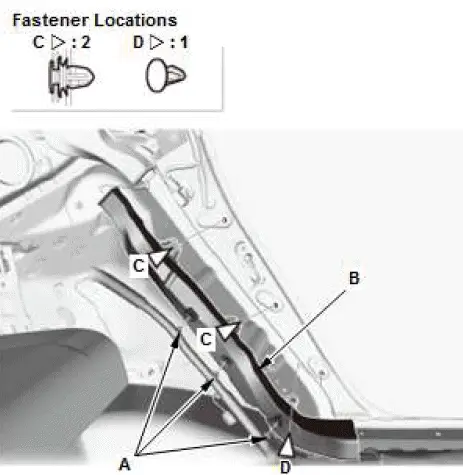

1. Remove the clips (A), and then remove the A/C side duct (B).

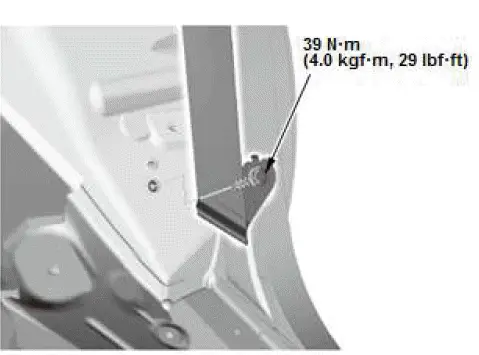

4. Second Row Seat Belt Lower Anchor Bolt - Remove

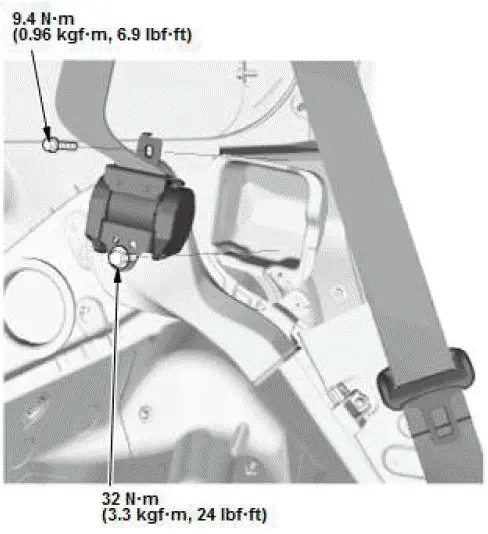

5. Second Row Seat Belt Assembly - Remove

6. All Removed Parts - Install

Upper anchor bolt installation

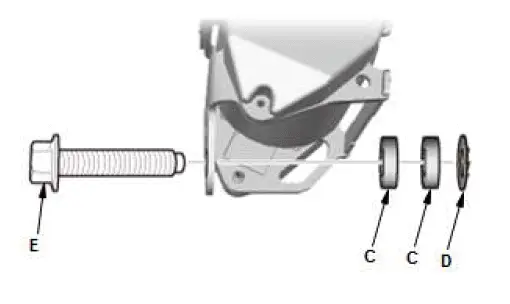

Seat belt assembly bolt installation

NOTE:

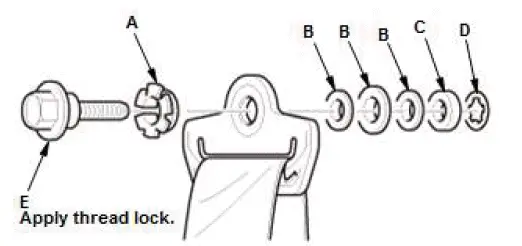

• Assemble the bushing (A), the washers (B), the collars (C), and the toothed lock washer (D) on the bolt (E) as shown.
• Apply medium strength type liquid thread lock to the upper anchor bolt before reinstallation.

Center Seat Belt (Bench Seat Only)

1. Headliner - Remove

2. Center Second Row Seat Belt Upper Anchor - Remove

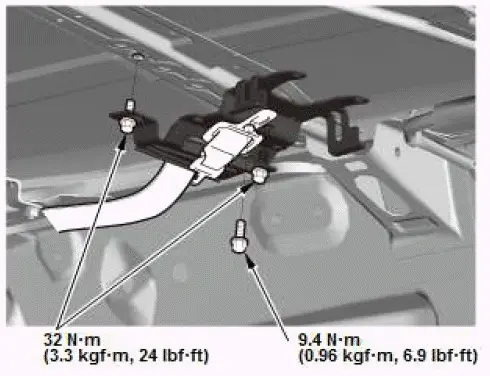

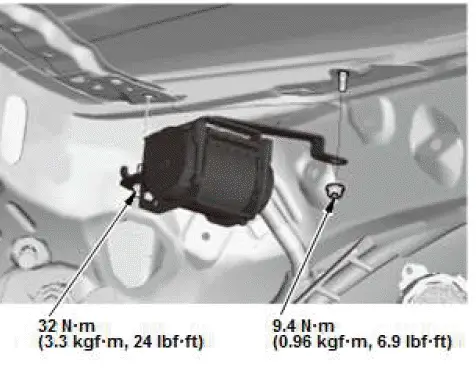

3. Center Second Row Seat Belt Assembly - Remove
