Honda Pilot: Second Row Seat Frame Removal and Installation

Removal/Installation

Seat Back

1. Second Row Seat - Remove

2. Second Row Seat Armrest - Remove

3. Second Row Seat Armrest Panel - Remove

4. Second Row Seat-Back Cover - Remove

5. Third Row Seat Access Cable - Remove

6. Second Row Seat-Back Recline Cable - Remove

7. Third Row Seat Access Handle Assembly - Remove (Without One-Touch Access)

8. One-Touch Access Switch - Remove

9. One-Touch Access Actuator - Remove

10.Second Row Seat Frame - Remove

Left seat

Right seat

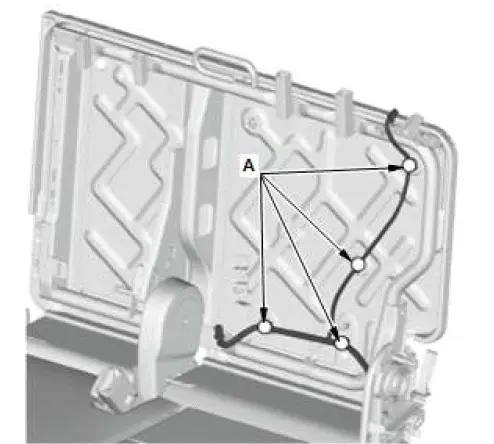

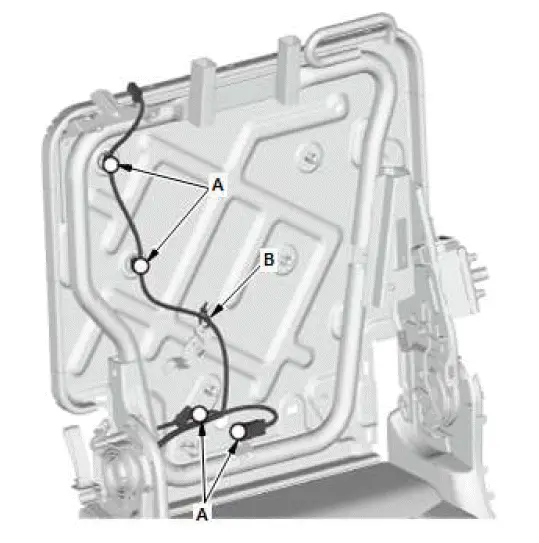

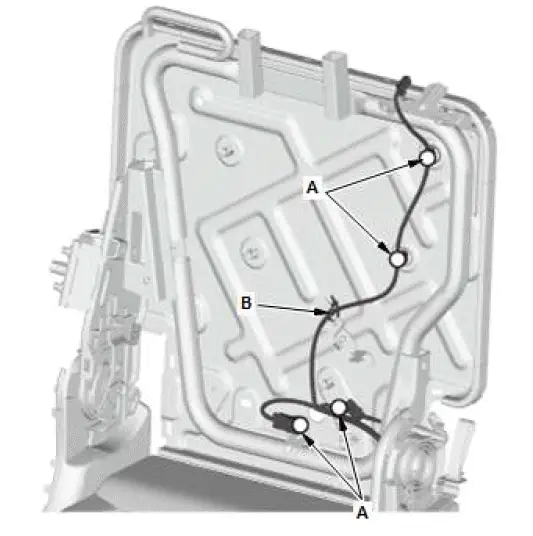

1. Remove the harness clips (A) and wire tie (B). (with one- touch access)

Left seat

Right seat

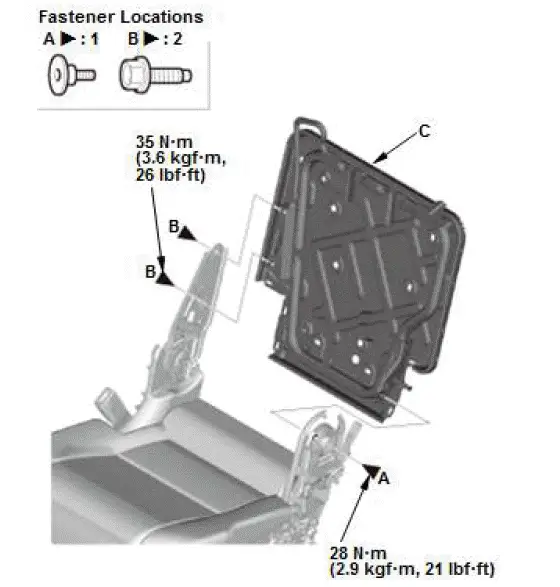

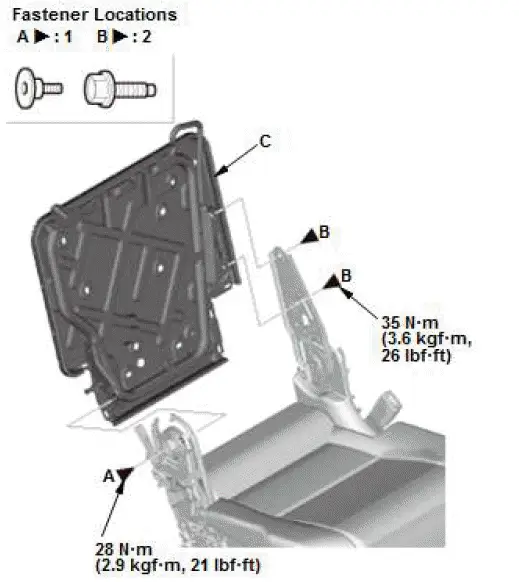

2. Remove the bolt (A), using a TORX T40 bit, remove the bolts (B) and the seat-back frame (C).

Seat Cushion

1. Second Row Seat - Remove

2. Second Row Seat Recline Cover - Remove

3. Second Row Seat Cushion Cover - Remove

4. Third Row Seat Access Cable - Remove

5. Second Row Seat-Back Recline Cable - Remove

6. Second Row Seat Frame - Remove

Left seat

Right seat

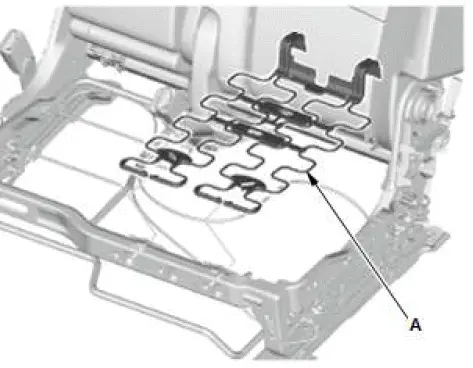

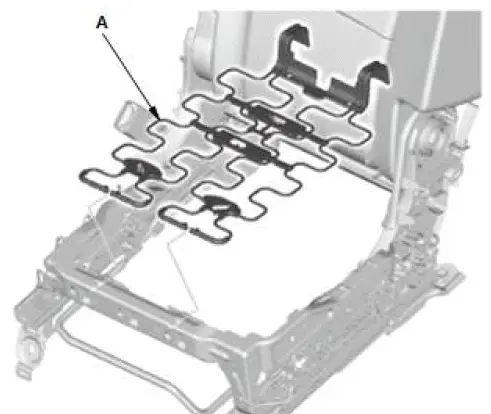

1. Remove the seat cushion spring (A).

Left seat

Right seat

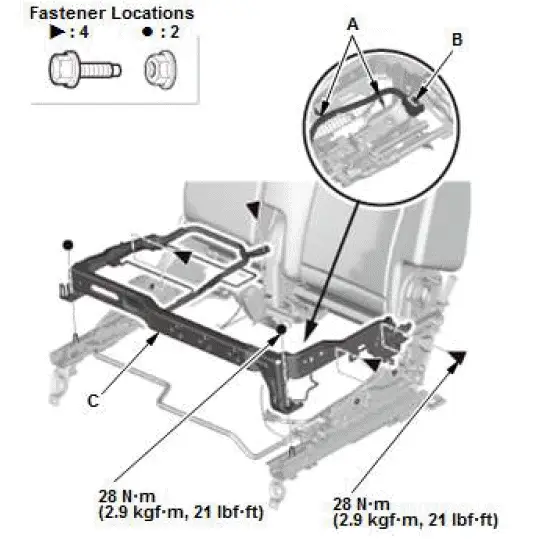

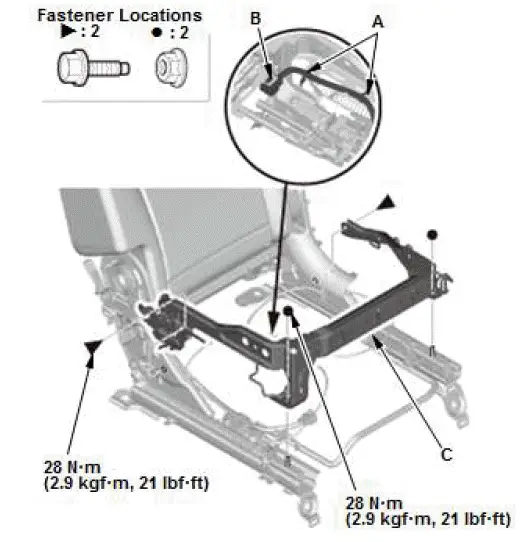

2. Release the wire ties (A), the clip (B).
3. Remove the bolts, nuts and seat cushion frame (C).

7. All Removed Parts - Install

1. Install the parts in the reverse order of removal.

Second Row Seat Frame Removal and Installation

Removal and Installation

Seat Back

1. Second Row Seat - Remove

2. Second Row Seat Armrest - Remove

3. Second Row Seat-Back Cover - Remove

4. Third Row Seat Access Cable - Remove

5. Second Row Seat-Back Recline Cable - Remove

6. One-Touch Access Switch - Remove

7. One-Touch Access Actuator - Remove

8. Second Row Seat Frame - Remove

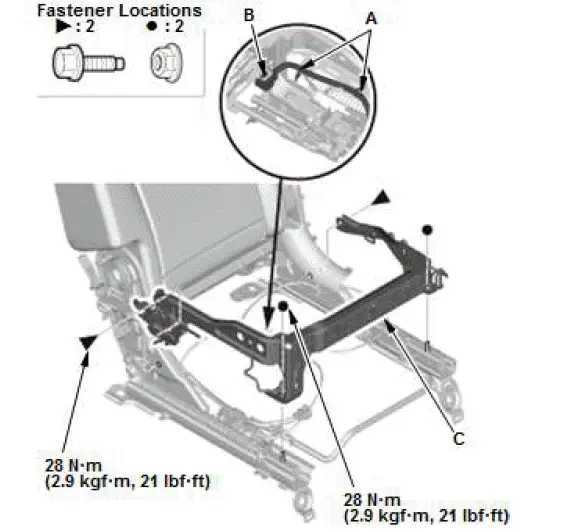

1. Remove the harness clips (A) and wire tie (B).

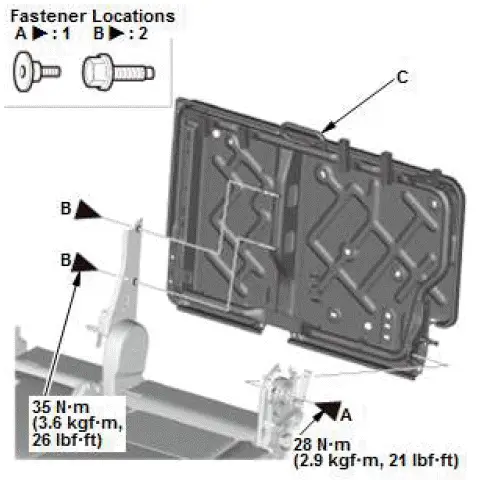

2. Remove the bolt (A), using a TORX T40 bit, remove the bolts (B) and the seat-back frame (C).

Seat Cushion

1. Second Row Seat - Remove

2. Second Row Seat Recline Cover - Remove

3. Second Row Seat Cushion Cover - Remove

4. Third Row Seat Access Cable - Remove

5. Second Row Seat-Back Recline Cable - Remove

6. Second Row Seat Heater Control Unit - Remove

7. Second Row Seat Frame - Remove

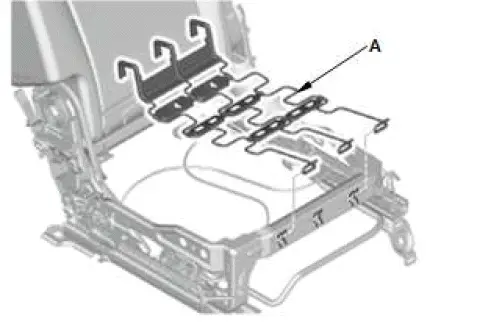

1. Remove the seat cushion spring (A).

Left seat

Right seat

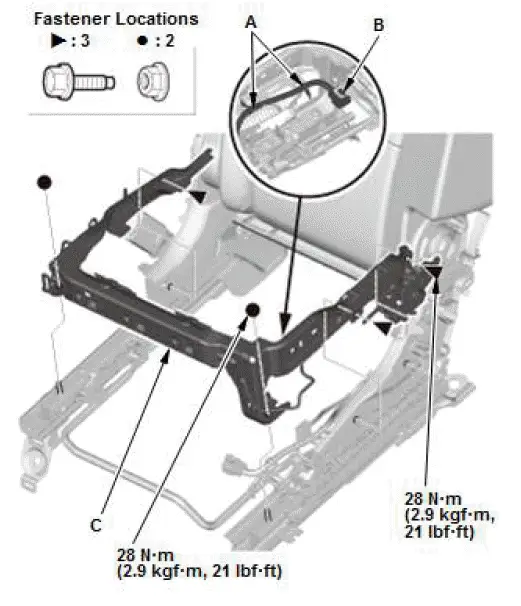

2. Release the wire ties (A), the clip (B).
3. Remove the bolts, nuts and seat cushion frame (C).

8. All Removed Parts - Install

1. Install the parts in the reverse order of removal.
