Honda Pilot: Second Row Seat Heater Control Unit Removal and Installation
Honda Pilot 2016-2022 (YF5/YF6) Service Manual / Remove, Install, Replace, Check info / Second Row Seat Heater Control Unit Removal and Installation
Removal/Installation
1. Second Row Seat Recline Cover - Remove
- Remove the outer side second row seat recline cover.
NOTE: If you are removing the second row seat recline cover, you do not need to remove the second row seat.
2. Second Row Seat Cushion Cover - Remove (as needed)
3. Second Row Seat Heater Control Unit - Remove
- Disconnect the connector.

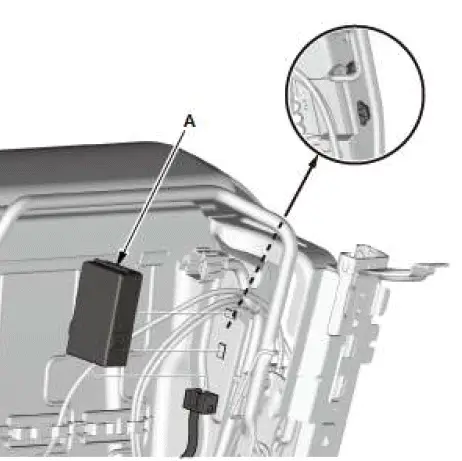

- Remove the second row seat heater control unit (A).
4. All Removed Parts - Install
- Install the parts in the reverse order of removal.
