Honda Pilot: Second Row Seat One-Touch Access Switch Removal and Installation
Honda Pilot 2016-2022 (YF5/YF6) Service Manual / Remove, Install, Replace, Check info / Second Row Seat One-Touch Access Switch Removal and Installation
Removal/Installation
Seat Cushion Side
1. Second Row Seat Recline Cover - Remove
NOTE: If you are removing the second row seat recline cover, you do not need to remove the second row seat.

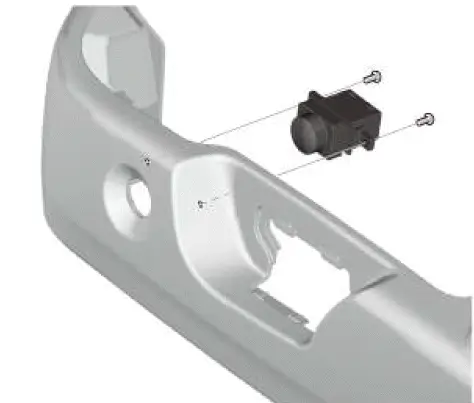

2. One-Touch Access Switch - Remove
3. All Removed Parts - Install
- Install the parts in the reverse order of removal.
Seat-Back Side
1. Second Row Seat - Remove
2. Second Row Seat-Back Cover - Remove
3. One-Touch Access Switch - Remove

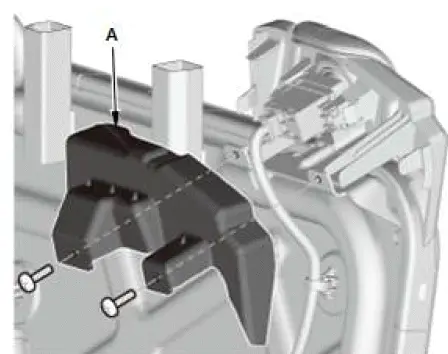

- Remove the cover (A).
NOTE: The left second row seat-back side is as shown; the right second row seat-back side is similar.
- Disconnect the connector.

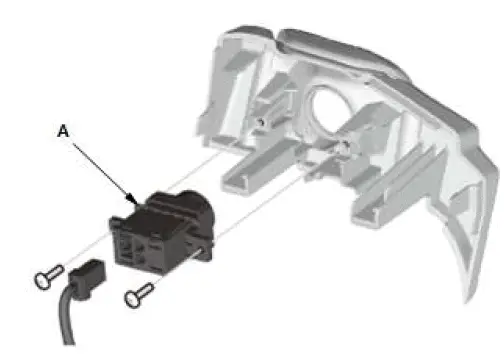

- Remove the one-touch access switch (A).
4. All Removed Parts - Install
- Install the parts in the reverse order of removal.
