Honda Pilot: Second Row Seat Removal and Installation

Removal/Installation

1. Second Row Seat Front Foot Cover - Remove

2. Rear Door Sill Upper Trim - Remove

3. Rear Door Sill Lower Trim - Remove

4. Second Row Seat - Remove

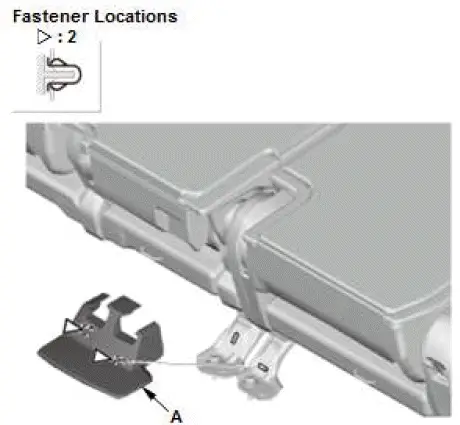

1. Remove the front foot cover (A).

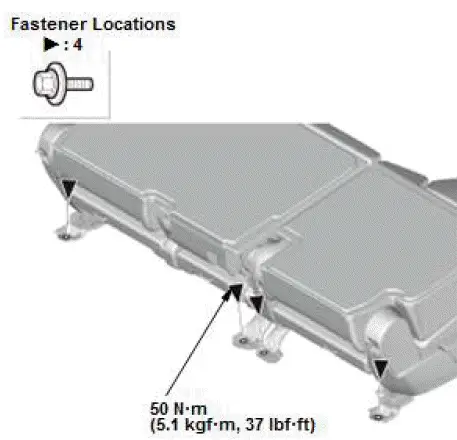

2. Remove the bolts.

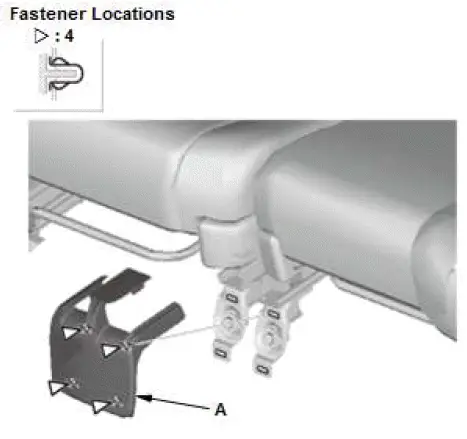

3. Remove the rear foot cover (A).

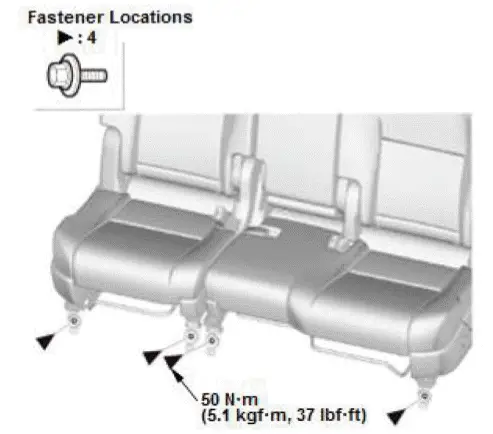

4. Remove the bolts.

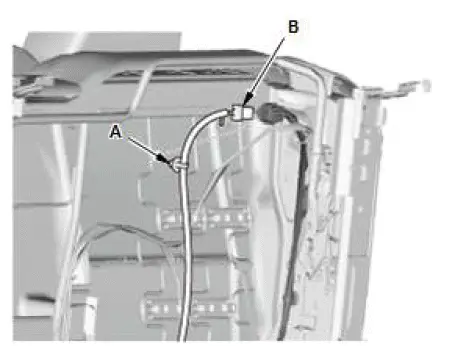

5. Lift up the second row seat, and then remove the harness clip (A) and disconnect the connector (B). (if equipped)

5. All Removed Parts - Install

1. Install the parts in the reverse order of removal.

Second Row Seat Slide Lever Removal and Installation

Removal/Installation

1. Second Row Seat - Remove

2. Second Row Seat Slide Lever - Remove

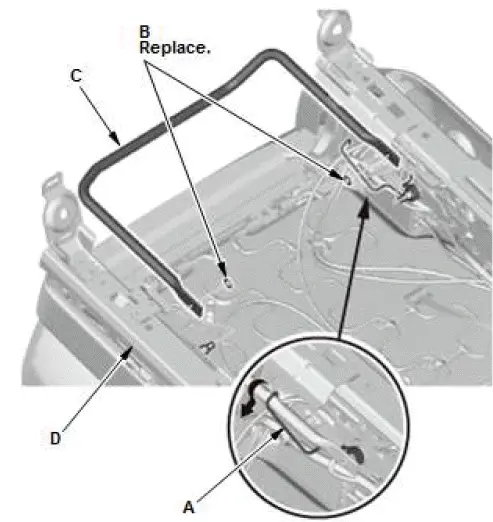

1. Release the spring (A), and the push nuts (B).
2. Remove the slide lever (C) from seat cushion frame (D).

3. All Removed Parts - Install

1. Install the parts in the reverse order of removal.
