Honda Pilot: Shift Solenoid Valve C Test

Test

1. HDS DLC - Connect

2. Shift Solenoid Valve C - HDS Function Test

1. Select Shift Solenoid Valve C in the Miscellaneous Test Menu with the HDS.
2. Check that shift solenoid valve C operates with the HDS. A clicking sound should be heard.
   • If a clicking sound is heard, the solenoid valve is OK.

     The test is complete, disconnect the HDS.

   • If no clicking sound is heard, go to the next step, and test shift solenoid valve C.

3. Shift Solenoid Valve C - Remove

4. Shift Solenoid Valve C - Resistance Check

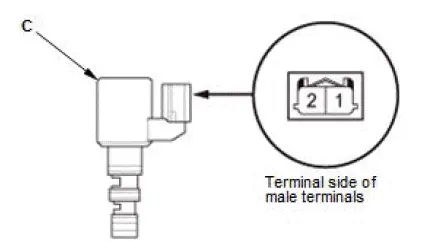

1. Measure the resistance of shift solenoid valve C between connector terminals No. 1 and No. 2.

Standard: 13.8－17.1 Ω

• If the resistance is out of the standard, replace shift solenoid valve C.
• If the resistance is within the standard, go to the next step, and check the shift solenoid valve C operation.

5. Shift Solenoid Valve C - Operation Check

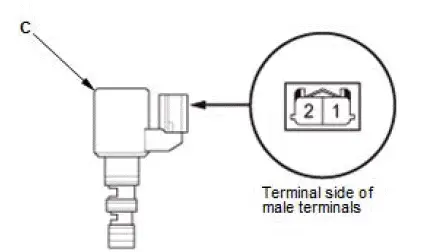

1. Connect a jumper wire from the positive battery terminal to shift solenoid valve C connector terminal No. 1, and connect another jumper wire from the negative battery terminal to connector terminal No. 2.

• If a clicking sound is heard, go to step 2.
• If no clicking sound is heard, replace shift solenoid valve C.

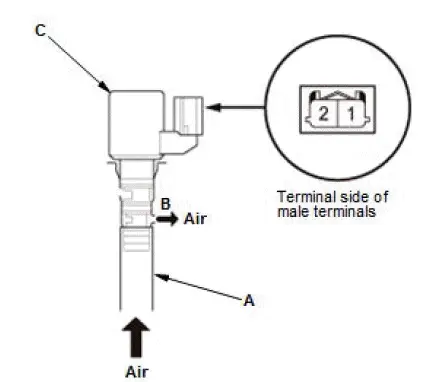

2. Connect a tube (A) to shift solenoid valve C.
3. Connect a jumper wire from the positive battery terminal to shift solenoid valve C connector terminal No. 1, and connect another jumper wire from the negative battery terminal to connector terminal No. 2. Blow air into the tube.

• If the air goes out of the port (B), go to step 4.
• If the air does not go out of the port, replace shift solenoid valve C.

4. Disconnect the jumper wires from the shift solenoid valve C connector. Blow air into the tube.

• If the air goes out of the port, replace shift solenoid valve C.
• If the air does not go out of the port, repair the wire between the shift solenoid valve C and the PCM, then go to the next step, and install shift solenoid valve C.

6. Shift Solenoid Valve C - Install
