Honda Pilot: Shift Lock Solenoid Test

Test

NOTE: The shift lock solenoid and the shift lock unit are not available separately. Remove the shift lock solenoid and the shift lock unit as a set.

1. HDS DLC - Connect

2. Shift Lock Solenoid - Test

1. Select the Shift Lock Solenoid Test in the Miscellaneous Test Menu, and check that the shift lock solenoid operates with the HDS.
2. Check that the shift lever can be moved out of P when the Shift Lock Solenoid is ON. Move the shift lever back to P, and check that it locks when the Shift Lock Solenoid is OFF.
3. Check that the shift lock releases when the shift lock release is pushed, and check that it locks when the shift lock release is released.
4. If the shift lock solenoid does not work properly, go to the shift lock system circuit troubleshooting.

Shift Solenoid Valve A and B Test

Test

1. HDS DLC - Connect

2. Shift Solenoid Valve - HDS Function Test

1. Select Shift Solenoid Valve A or B in the Miscellaneous Test Menu with the HDS.
2. Check that shift solenoid valve A or B operates with the HDS. A clicking sound should be heard.
   • If a clicking sound is heard, the solenoid valve is OK.

     The test is complete, disconnect the HDS.

   • If no clicking sound is heard, go to the next step, and test the shift solenoid valve.

3. Secondary Valve Body - Remove

4. Shift Solenoid Valve - Resistance Check

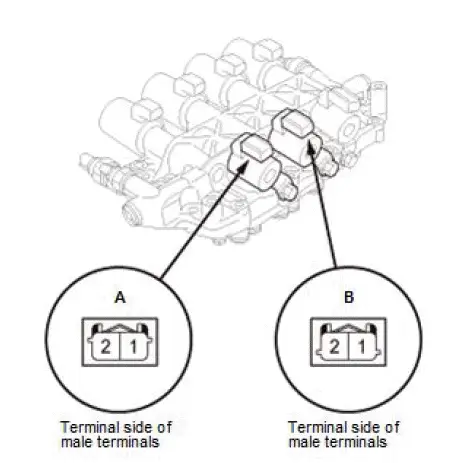

1. Measure the resistance of shift solenoid valves A and B between connector terminals No. 1 and No. 2.

Standard: 13.8－17.1 Ω

• If the resistance is out of the standard, replace the secondary valve body.
• If the resistance is within the standard, go to the next step, and check the shift solenoid valve operation.

5. Shift Solenoid Valve - Operation Check

1. Connect a jumper wire from the positive battery terminal to shift solenoid valve A or B connector terminal No. 1, and connect another jumper wire from the negative battery terminal to connector terminal No. 2.
   • If a clicking sound is heard, repair the wire between the defective shift solenoid valve and the PCM, then go to the next step, and install the secondary valve body.
   • If no clicking sound is heard, replace the secondary valve body.

6. Secondary Valve Body - Install
