Honda Pilot: SRS System Description - Driver's and Front Passenger's Airbag

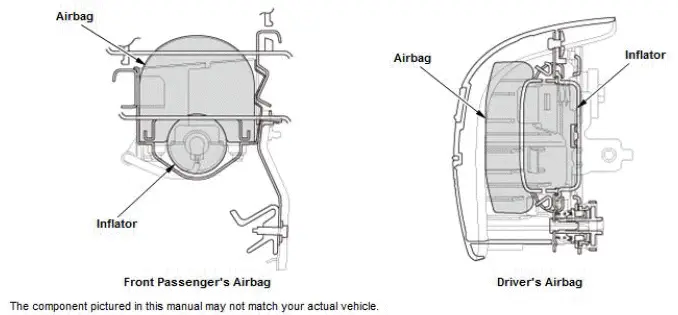

Airbag

The driver's airbag is located in the center of the steering wheel. The front passenger's airbag is located in the dashboard on the front passenger's side.

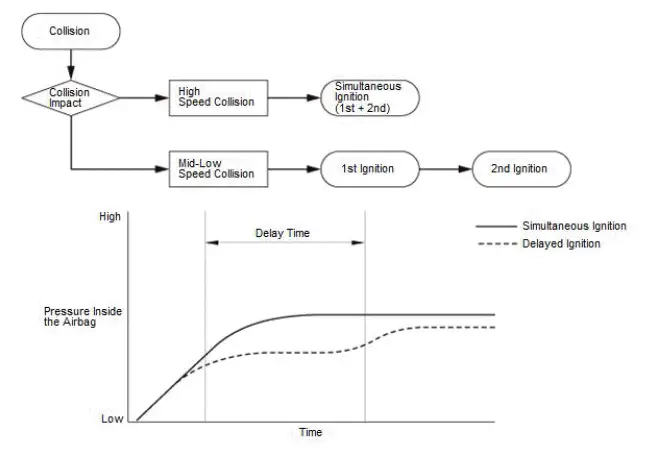

Dual Inflators

The airbag modules adopt dual inflators for the driver's and the front passenger's airbag. The dual inflators increase airbag effectiveness by properly adjusting the timing when the two inflators are to be ignited (together or sequentially) referring to the collision speed or collision impact.

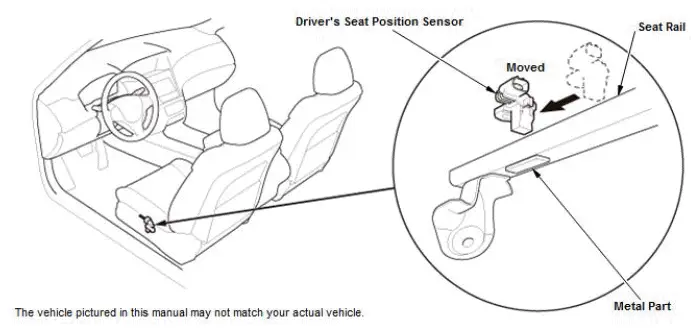

SRS System Description - Driver's Seat Position Sensor

The driver's seat position sensor is mounted to the driver's seat rail. When the driver's seat is moved to the full-forward position, a metal part of the seat track interrupts the sensor signal. This change in signal is then sent to the SRS unit for processing. If a frontal airbag deployment becomes necessary, the driver's airbag will deploy at the slowest rate, regardless of impact severity. With the seat moved further back, the SRS unit commands the appropriate deployment force based on impact severity.
