Honda Pilot: Stereo Amplifier Connector for Inputs and Outputs
Honda Pilot 2016-2022 (YF5/YF6) Service Manual / Connector input and output Info / Stereo Amplifier Connector for Inputs and Outputs
Connector Index
Stereo Amplifier Connector A (18P)

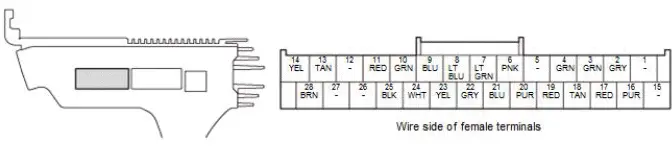

Stereo Amplifier Connector B (28P)

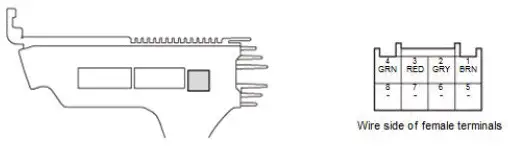

Stereo Amplifier Connector C (8P)

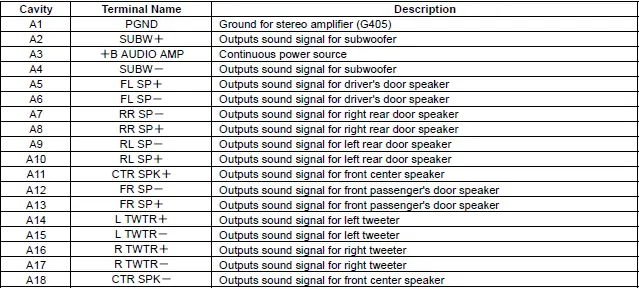

STEREO AMPLIFIER CONNECTOR A (18P)

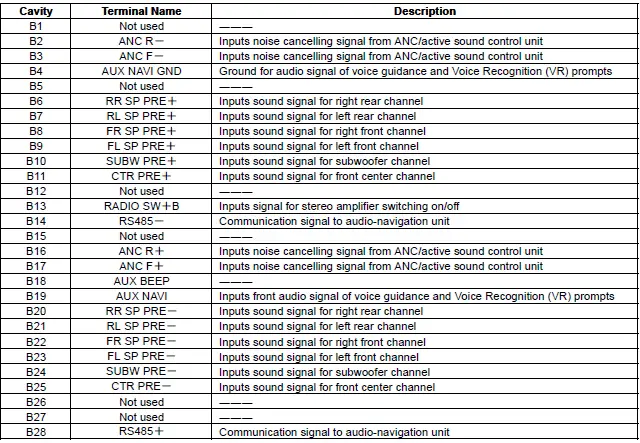

STEREO AMPLIFIER CONNECTOR B (28P)

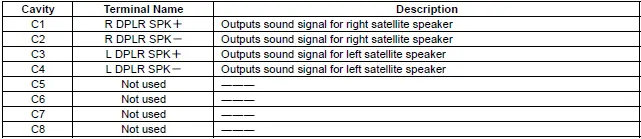

STEREO AMPLIFIER CONNECTOR C (8P)

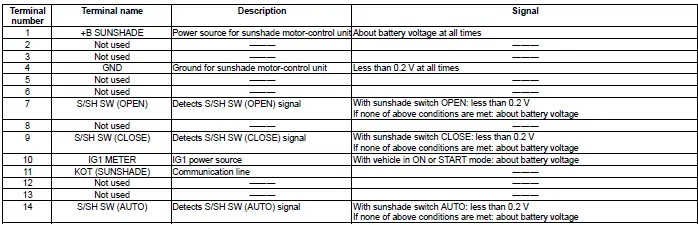

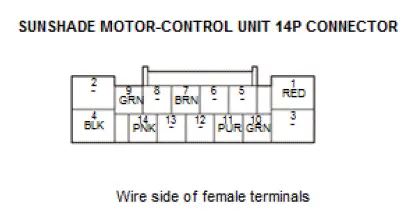

Sunshade Motor-Control Unit Connector for Inputs and Outputs
Tuner Unit Connector for Inputs and Outputs
Connector Index

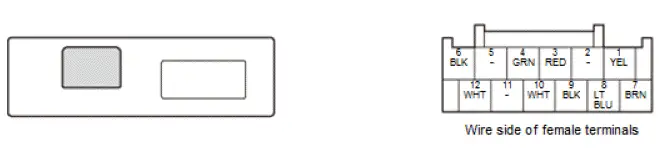

Tuner Unit Connector A (12P)
Tuner Unit Connector B (5P)

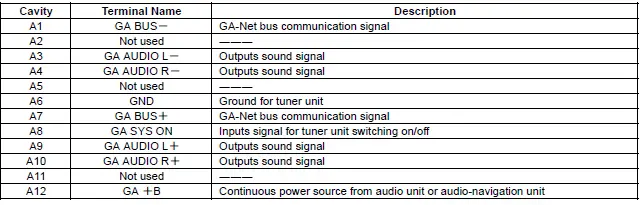

TUNER UNIT CONNECTOR A (12P)

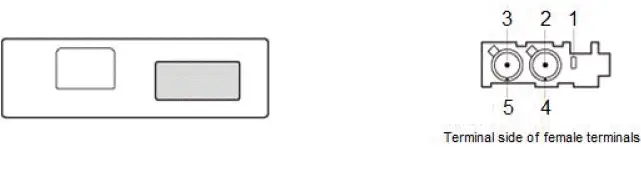

TUNER UNIT CONNECTOR B (5P)
