Honda Pilot: Tailgate Release Actuator Test

Test

1. Tailgate Trim Panel - Remove

2. Tailgate Release Actuator - Test

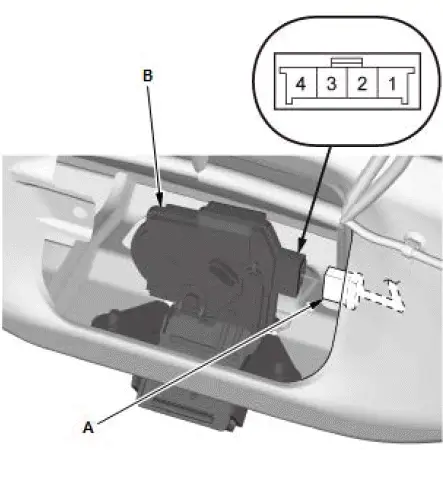

1. Disconnect the connector (A).

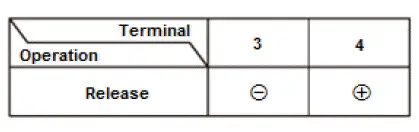

2. Check the actuator operation by connecting power and ground according to the table.

   NOTE: To prevent damage to the solenoid, apply battery voltage only momentarily.

3. If the actuator does not actuate, the tailgate release actuator is faulty; replace the tailgate latch (B).

3. All Removed Parts - Install

1. Install the parts in the reverse order of removal.

Tailpipe Emissions Test

Test

1. HDS - Connect

2. Tailpipe Emissions - Test

1. Start the engine. Hold the engine speed at 3,000 rpm without load (in P or N) until the radiator fan comes on, then let it idle.
2. Check the idle speed within specification.
3. Warm up and calibrate the CO meter according to the meter manufacturer's instructions.
4. Check idle CO with the headlights, heater blower, rear window defogger, cooling fan, and air conditioner off.

Specified CO: 0.1 % max..

• If unable to obtain this reading; see DTC troubleshooting.
• If unable to obtain a CO reading of specified % by this procedure, check the tune-up condition.
