Honda Pilot: Tailgate Outer Handle/Lock Switch Test
Honda Pilot 2016-2022 (YF5/YF6) Service Manual / Parts Test Info / Tailgate Outer Handle/Lock Switch Test
Test
1. Tailgate Trim Panel - Remove
2. Tailgate Outer Handle/Lock Switch - Test

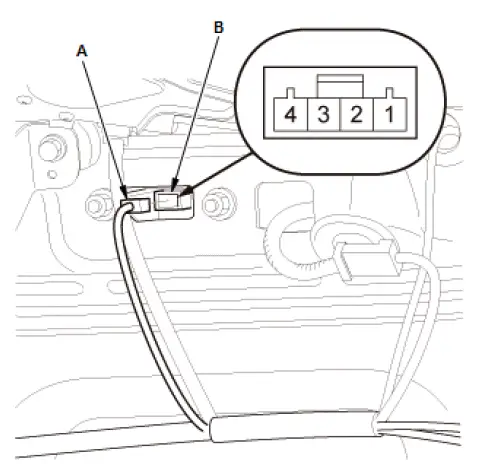

- Disconnect the connector (A).
- Check for continuity between the terminals in each switch position according to the table.
- If the continuity is not as specified, replace the tailgate outer handle/lock switch (B).

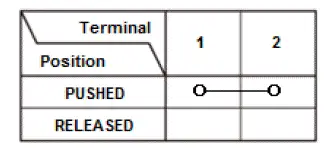

Outer Handle Switch

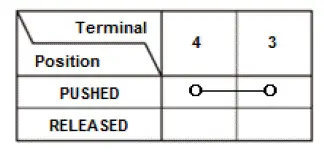

Lock Switch (With keyless access function)
3. All Removed Parts - Install
- Install the parts in the reverse order of removal.
Honda Pilot 2016-2022 (YF5/YF6) Service Manual
