Honda Pilot: TCM Removal and Installation

Removal

CAUTION

Before following the procedure, be sure to observe precautions and eliminate static electricity.

1. Air Cleaner - Remove

2. TCM - Remove

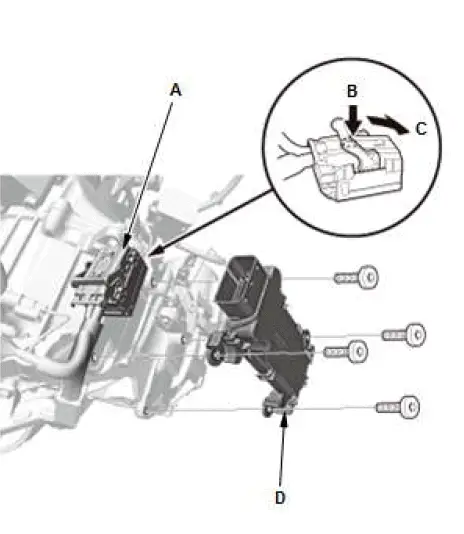

1. Disconnect the connector (A) by pushing the lock (B) and pulling the lever (C) up.
2. Remove the TCM (D).

Installation

CAUTION

Before following the procedure, be sure to observe precautions and eliminate static electricity.

NOTE:

• If you only remove the TCM, skip the Procedure After Replacing TCM.
• If you replace the TCM, you must done all procedures below.

1. TCM - Install

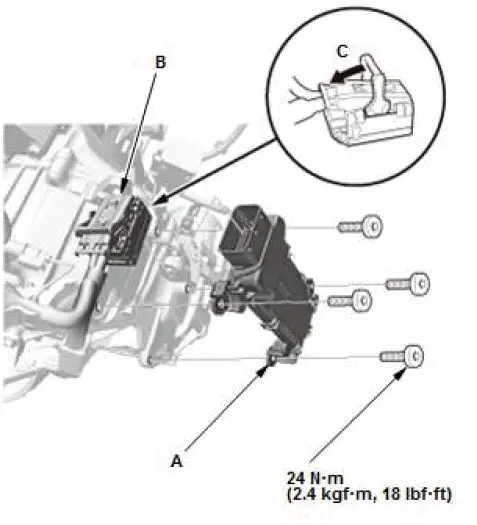

1. Install the TCM (A).
2. Connect the connector (B), and lock the connector by pulling the lever (C) down.

   NOTE: When connecting the connector, check for corrosion, dirt, or oil, and clean or repair if necessary.

2. Air Cleaner - Install

Procedure After Replacing TCM

3. Keyless Access System - Register (Without Electric Steering Lock)

4. TCM - Update

5. Hydraulic Pressure Characteristic - Calibrate
