Honda Pilot: Third Row Seat Belt Buckle Removal and Installation

Removal/Installation

Left Side

1. Divider Cargo Bin - Remove

2. Third Row Seat Belt Buckle - Remove

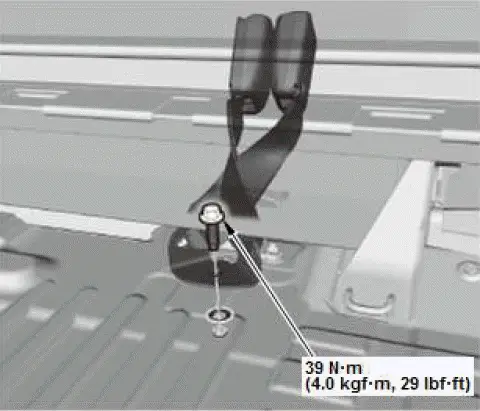

1. Remove the bolt.

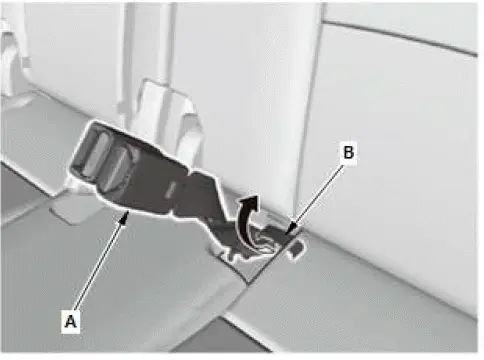

2. Release the seat belt buckle (A) from the elastic strap (B), and then remove the seat belt buckle.

3. All Removed Parts - Install

1. Install the parts in the reverse order of removal.

Right Side

2. Third Row Seat belt Buckle - Remove

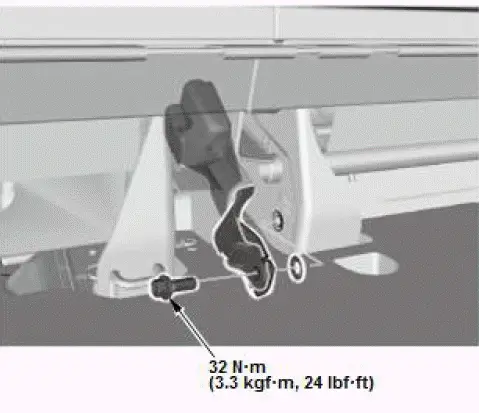

1. Remove the bolt.

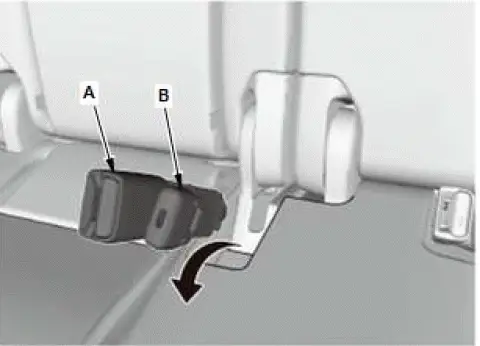

2. Remove the seat belt buckle (A) and detachable anchor (B).

3. All Removed Parts - Install

1. Install the parts reverse order of removal.

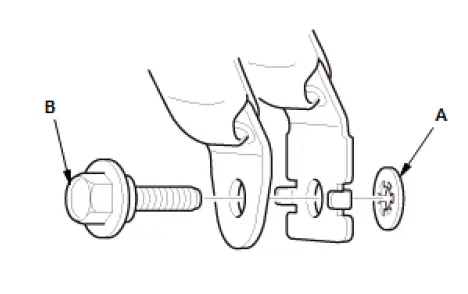

   NOTE: Assemble the toothed lock washer (A) on the anchor bolt (B) as shown.
