Honda Pilot: Third Row Seat Belt Removal and Installation

Removal/Installation

Left/Right Seat Belt

1. Rear Side Trim Panel - Remove

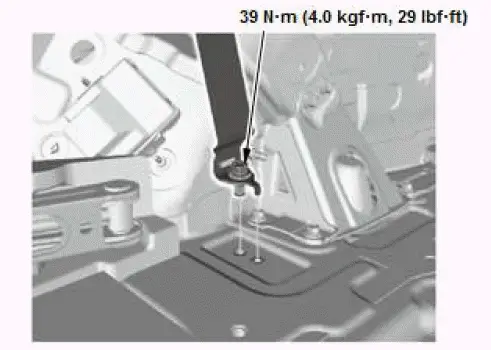

2. Third Row Seat Belt Lower Anchor Bolt - Remove

3. D-Pillar Trim - Remove

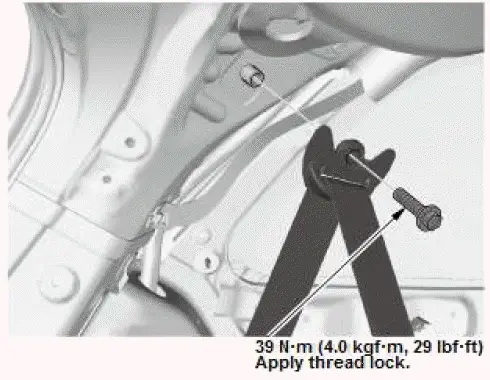

4. Third Row Seat Belt Upper Anchor Bolt - Remove

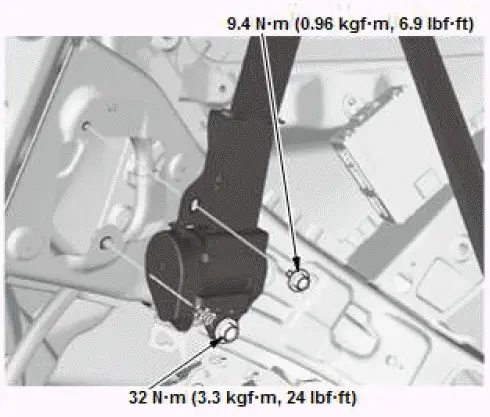

5. Third Row Seat Belt Assembly - Remove

6. All Removed Parts - Install

Upper anchor bolt installation

1. Install the parts reverse order of removal.

NOTE:

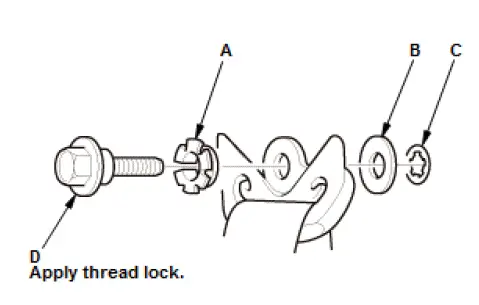

• Assemble the bushing (A), the plain washer (B), and the toothed lock washer (C) on the upper anchor bolt (D) as shown.
• Apply medium strength type liquid thread lock to the upper anchor bolt before reinstallation.

Center Seat Belt

1. Rear Roof Trim - Remove

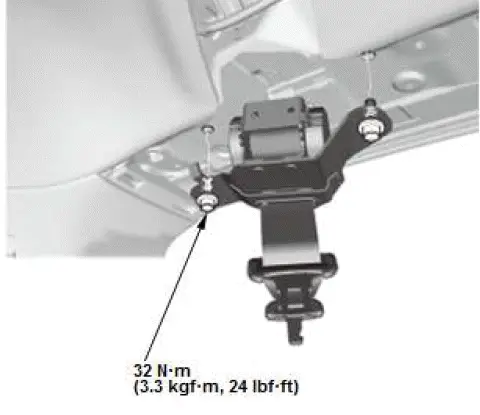

2. Center Third Row Seat Belt Assembly - Remove

3. All Removed Parts - Install

1. Install the parts in the reverse order of removal.
