Honda Pilot: Third Row Seat Frame Removal and Installation

Removal/Installation

1. Third Row Seat - Remove

2. Third Row Seat-Back Cover - Remove

3. Third Row Seat-Back Recline Cover - Remove

4. Third Row Seat Back Recline Cable Cover - Remove

5. Third Row Seat Frame - Remove

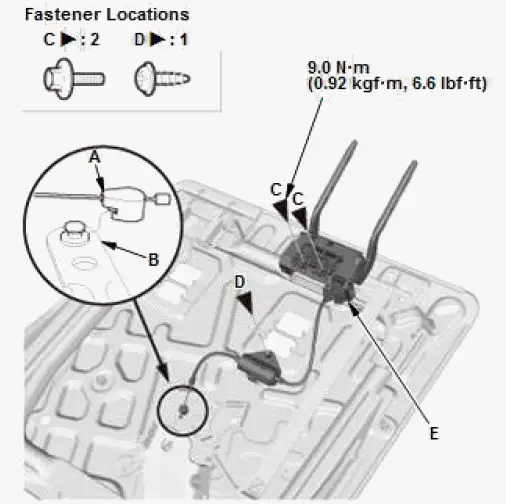

1. Disconnect the cable (A) from frame bracket (B).
2. Remove the bolts (C) and screw (D), and headrest mechanism (E).

Left side

Right side

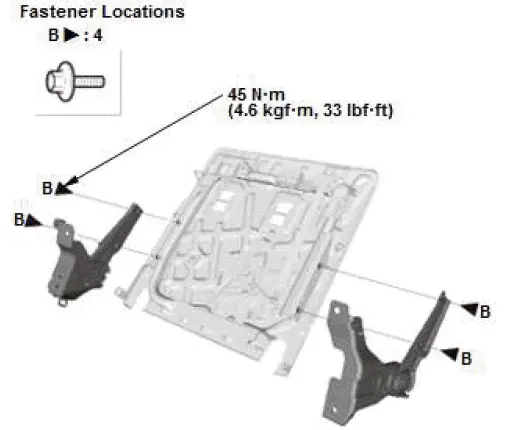

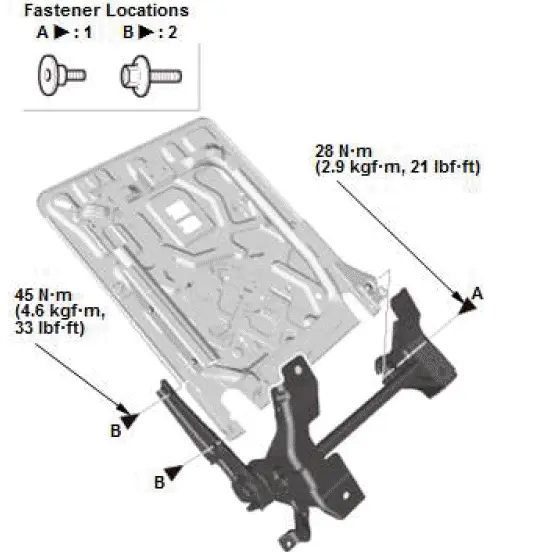

3. Remove the bolt (A) with a TORX T30 bit, and remove the bolts (B).

6. All Removed Parts - Install

1. Install the parts in the reverse order of removal.
