Honda Pilot: Third Row Seat Recline Cover Removal and Installation
Honda Pilot 2016-2022 (YF5/YF6) Service Manual / Remove, Install, Replace, Check info / Third Row Seat Recline Cover Removal and Installation
Removal/Installation
1. Third Row Seat Back - Remove
2. Third Row Seat Back Cover - Remove

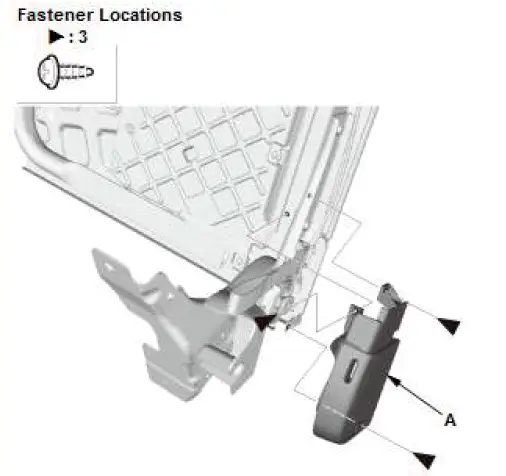

3. Third Row Seat Outer Recline Cover - Remove
- Remove the covers (A).

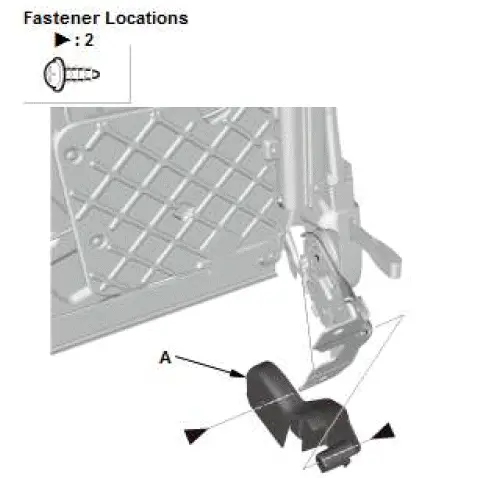

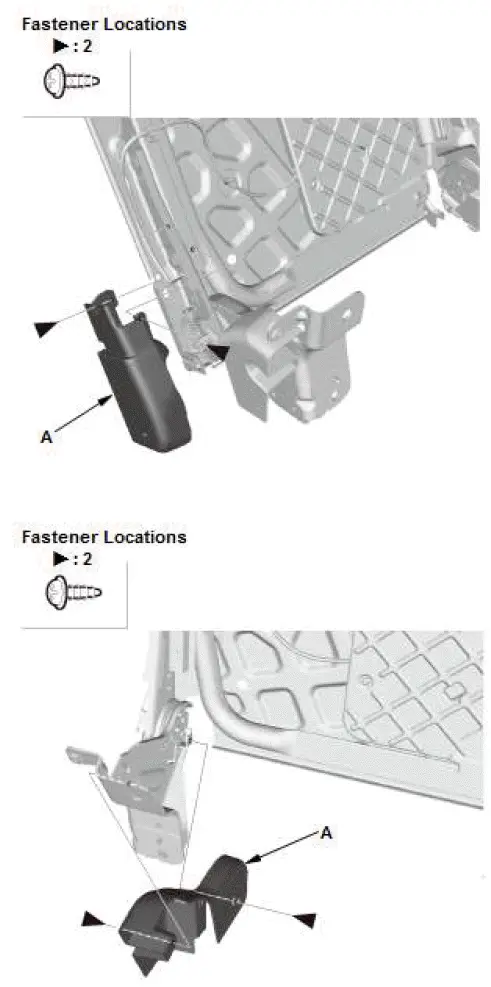

4. Third Row Seat Inner Recline Cover - Remove
- Remove the covers (A).
5. All Removed Parts - Install
- Install the parts in the reverse order of removal.
